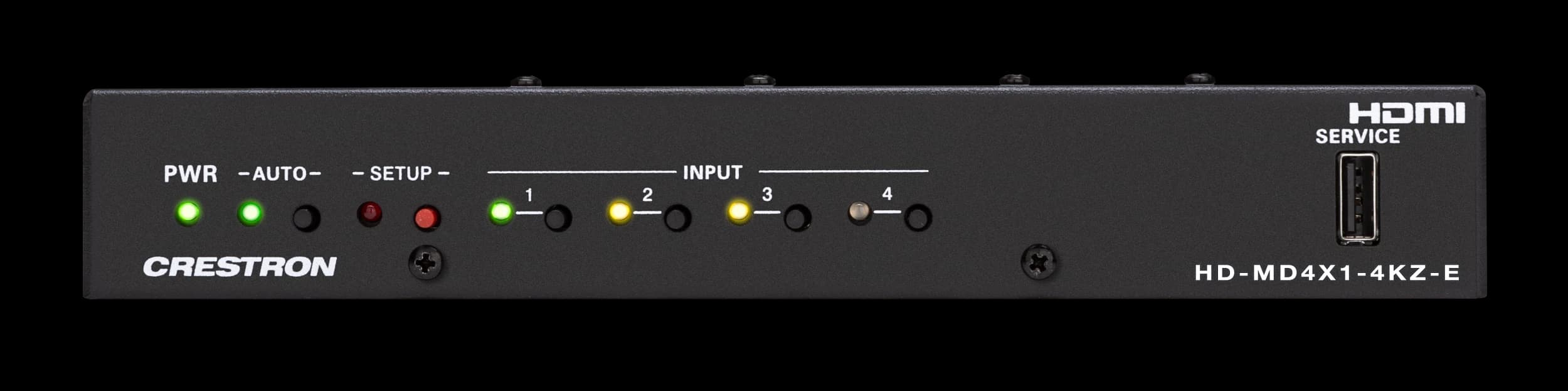

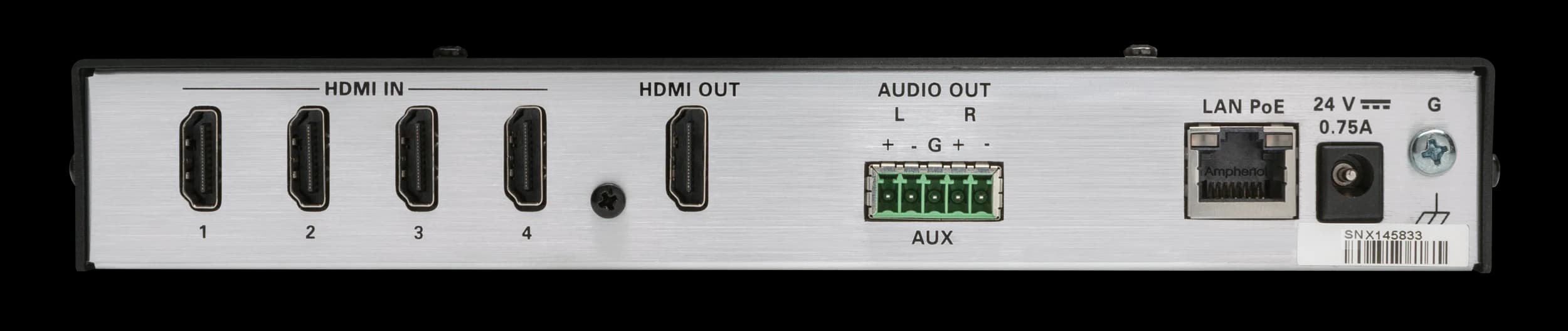

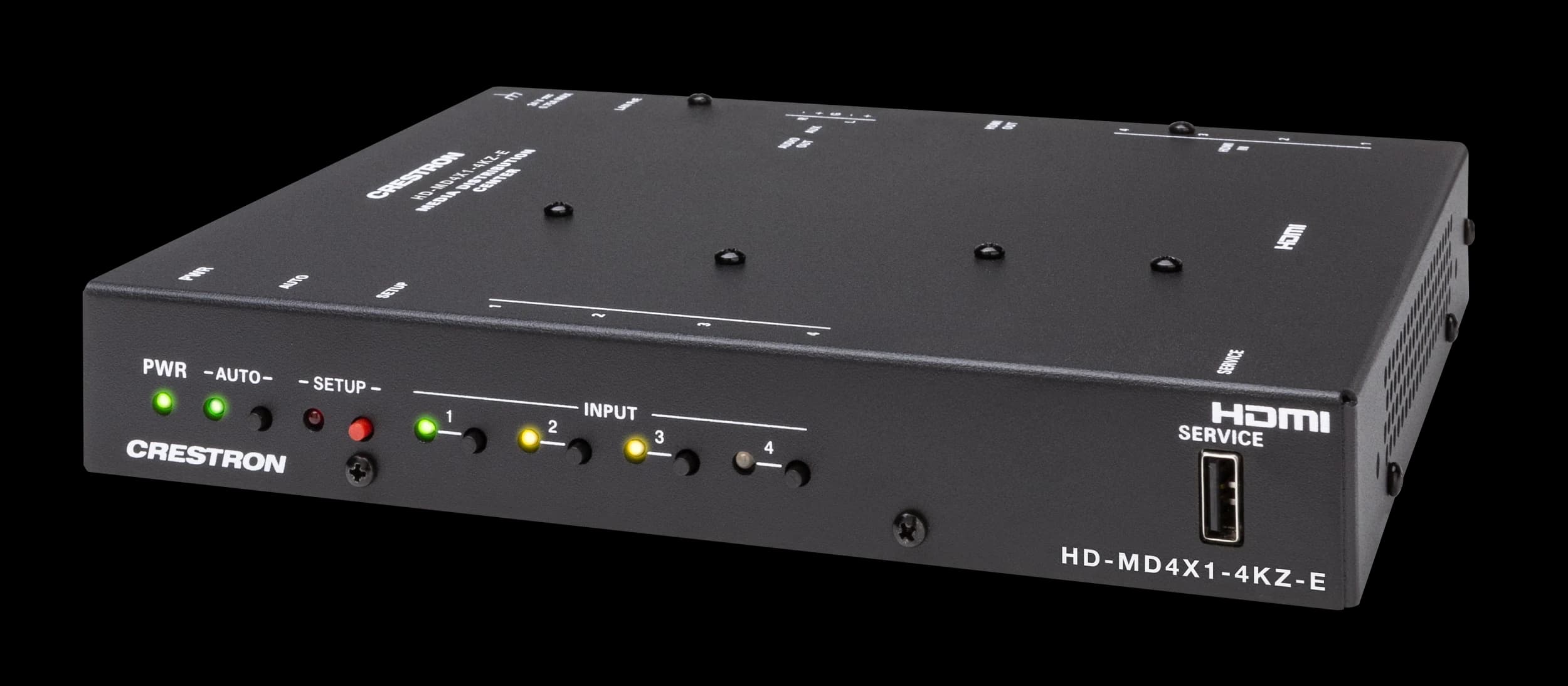

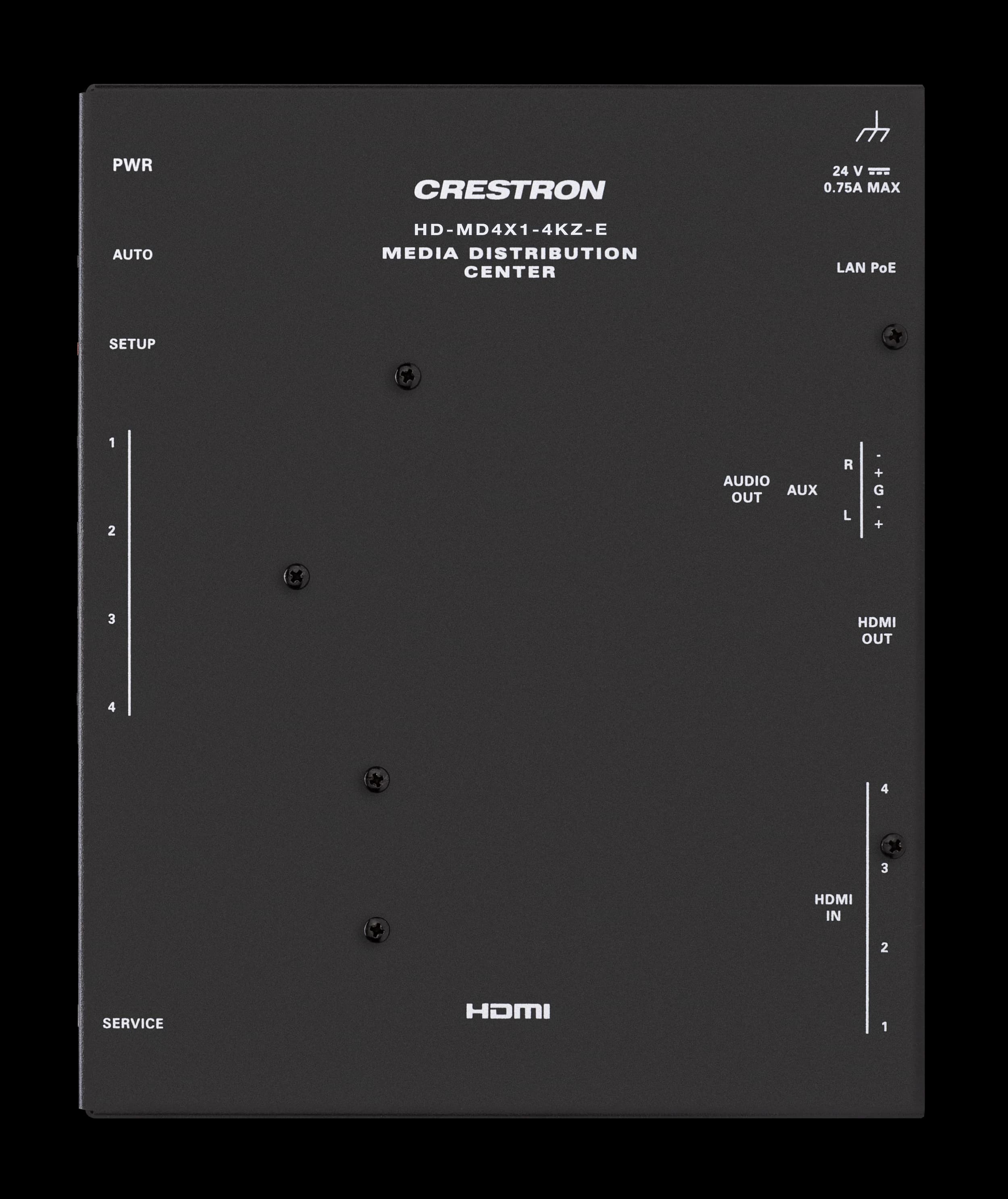

Crestron HD-MD4X1-4KZ-E

The Crestron HD-MD4X1-4KZ-E is a 4K60 4:4:4 HDR AV switcher providing four HDMI inputs and one HDMI output, with automatic input switching and EDID management.

Two-channel LPCM audio is extracted from the selected HDMI input to a stereo AUX output, and the unit is controllable over Ethernet with XiO Cloud support. It is powered by PoE or an optional power pack.

Specifications

Technical Overview

Video Inputs: 4 × HDMI with HDR10, HDR10+, Dolby Vision, Deep Color and 4K60 4:4:4 (DVI and Dual-Mode DisplayPort compatible)
Video Output: 1 × HDMI with HDR10, HDR10+, Dolby Vision, Deep Color and 4K60 4:4:4 (DVI compatible)
Audio Output: HDMI 2-channel LPCM; AUX stereo line output
Communications: Ethernet, HDMI (HDCP and EDID management)
Power: PoE IEEE 802.3at Type 1 (802.3af compatible), Class 0; optional power pack PW-2407WU (sold separately)
Power Consumption: 10 W typical
Dimensions: 8.52 in H × 7.0 in W × 1.34 in D (217 × 178 × 34 mm)
Weight: 1.8 lb (0.82 kg)
Mounting: Surface-mountable or single rack rail
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% to 90% RH, non-condensing
