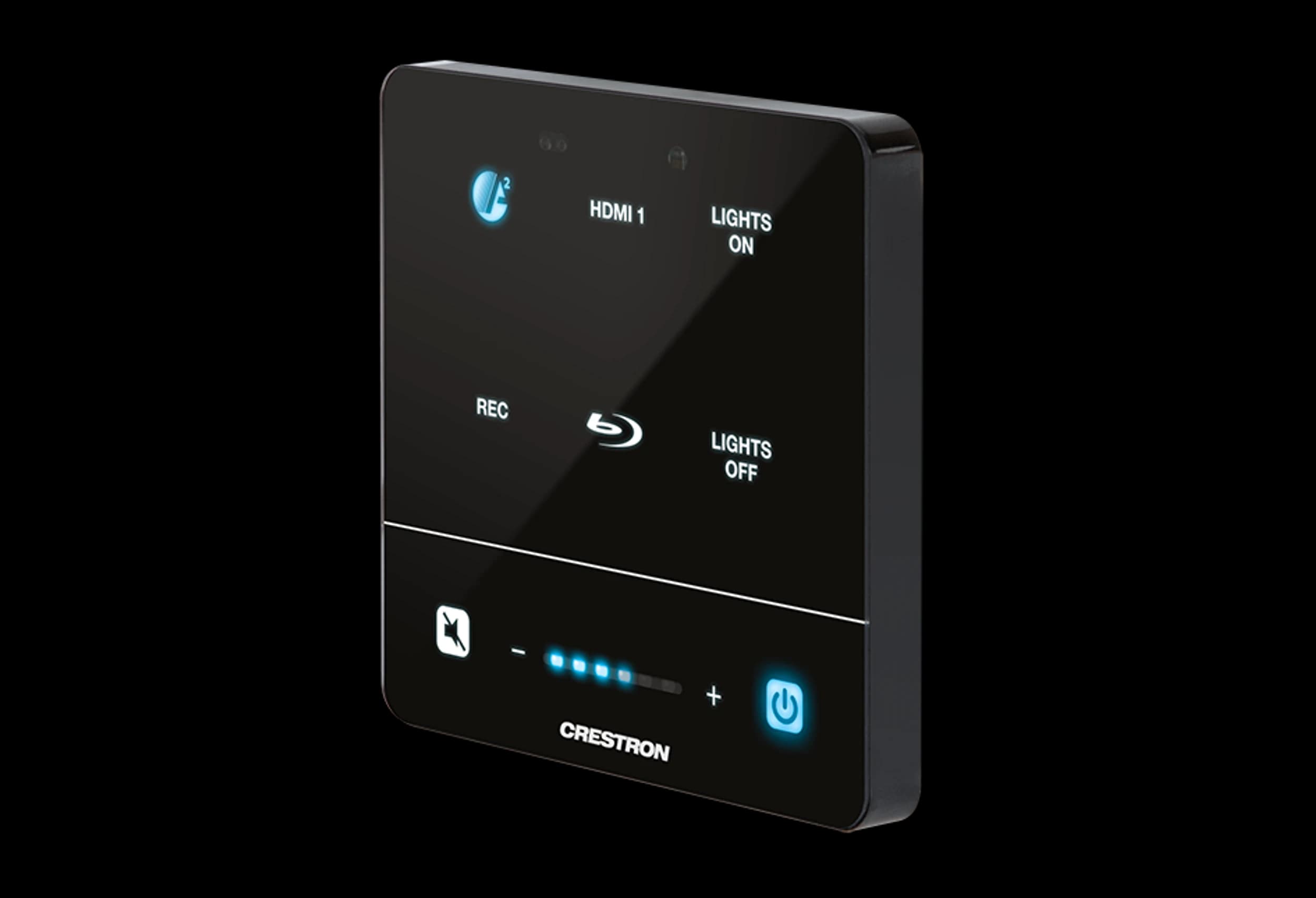

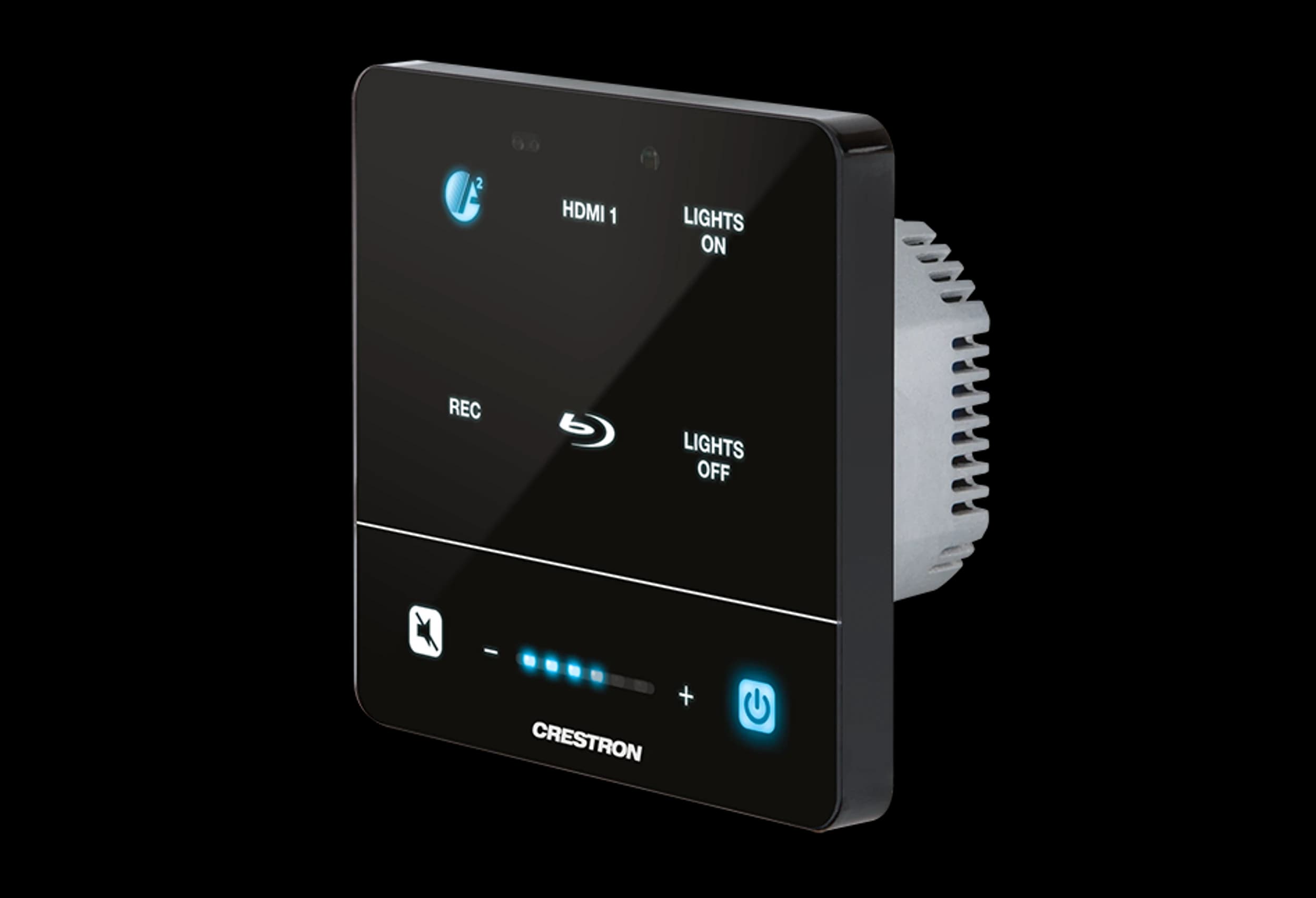

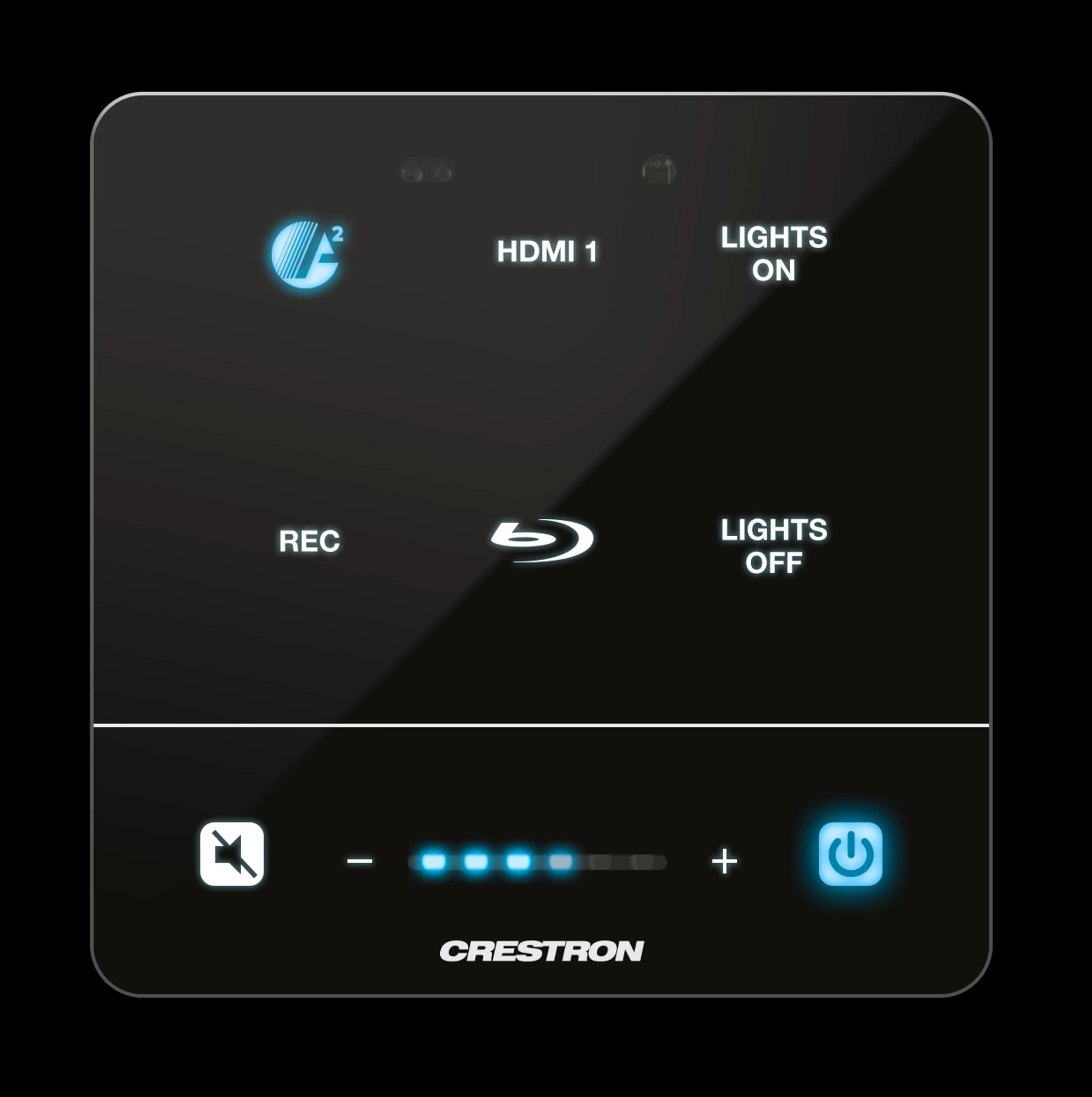

Crestron MPC3-201-B

The Crestron MPC3-201-B combines a 3-Series control engine with a wall-mount control surface, powered entirely over Ethernet (PoE) so no separate power supply or power wiring is required.

It provides six backlit capacitive buttons, dedicated mute, volume and power controls, a volume bargraph and a laser proximity sensor that wakes the unit when someone approaches. Crestron lists this model as discontinued; it is catalogued here for reference and replacement planning.

Specifications

Technical Overview

Control Engine: Crestron 3-Series control engine, real-time preemptive multithreaded kernel
Ethernet: 100 Mbps; TCP/IP, SSL, TLS, SSH, SFTP, IEEE 802.1X, SNMP, BACnet/IP
Buttons: 6 projected capacitive assignable buttons; mute; volume -/+; power
Indicators: Blue LED volume bargraph; individually backlit buttons
Sensors: Ambient light sensor; eye-safe 940 nm laser proximity sensor
Power: PoE IEEE 802.3at Type 1 (802.3af compatible), Class 0 (12.95 W); 3 W typical
Mounting: 1-gang European (DIN 49073) box; 2-gang US box with retrofit bracket; lectern cutout; tabletop kit (sold separately)
Dimensions: 3.42 in H × 3.42 in W × 1.88 in D (87 × 87 × 48 mm)
Weight: 7.3 oz (208 g)
Operating Temperature: 41°F to 104°F (5°C to 40°C)

Compatible Products

Frequently Paired With

Crestron MPC4-201

Crestron TSW-770
