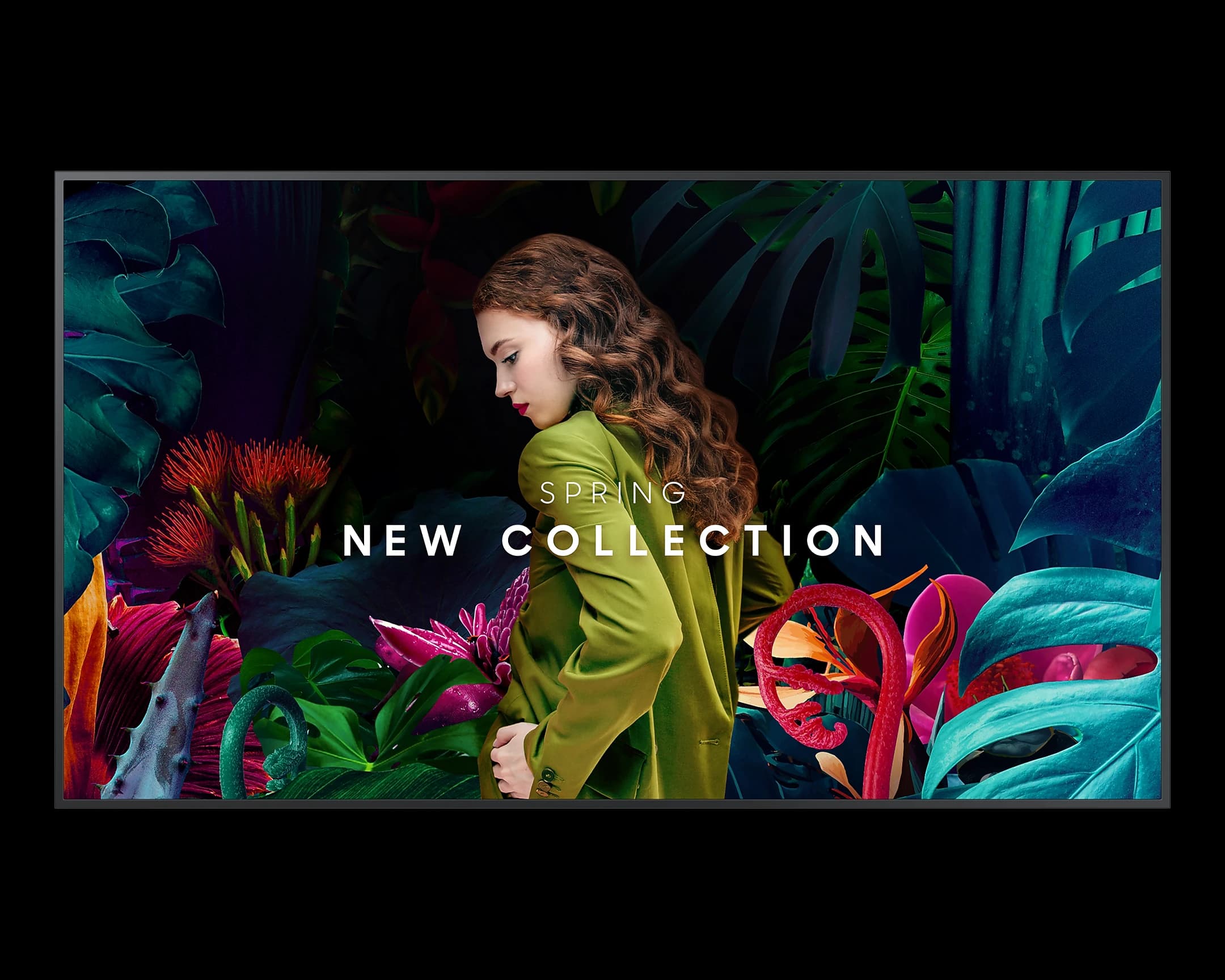

Samsung QB43C 43" Crystal UHD 4K Smart Signage

The Samsung QB43C is a 43-inch Crystal UHD 4K smart signage display built for always-on commercial deployments, running Tizen 7.0 with 8GB of internal flash storage and rated for 16/7 operation.

A VA panel delivers 3840 x 2160 resolution at 350 nits typical brightness with a 4,000:1 contrast ratio, and the display includes 3 HDMI inputs, 2 USB ports, RJ45 LAN, built-in Wi-Fi and Bluetooth, and 200 x 200mm VESA mounting for flexible installation.

Specifications

Technical Overview

Model Number: LH43QBCEBGCLXL (also listed as LH43QBCEBGCXXL)
Screen Size: 43 Inch (1.08 m diagonal)
Panel Type: VA
Resolution: 3840 x 2160
Pixel Pitch: 0.245 x 0.245 mm
Brightness (Typical): 350 nit
Contrast Ratio: 4,000:1 (Dynamic: Mega)
Viewing Angle: 178° / 178°
Response Time: 8 ms
Color Gamut: 72% (NTSC)
Glass Haze: 2%
Operation Time: 16/7
Operating System: Tizen 7.0
Flash Memory: 8 GB
HDMI In: 3 (HDMI 2.0, HDCP 2.2)
USB Ports: 2
RJ45 LAN: Yes
RS232 In/Out: Yes / Yes
IR In: Yes
Audio Out: Stereo mini jack
Wi-Fi: Yes
Bluetooth: Yes
Power Consumption (On Mode): 121 W
Power Consumption (Sleep Mode): 0.5 W
Dimensions (WxHxD): 969.5 x 557.8 x 28.5 mm
Net Weight: 8.8 kg
VESA Mount: 200 x 200 mm
Bezel: 1.15 cm even, Charcoal Black, non-glossy
Optional Wall Mount: WMN-B50SC
Optional Stand: STN-L4355C
Operating Temperature: 0°C to 40°C
EMC Class: Class B
Safety Compliance: 60950-1 / 62368-1
