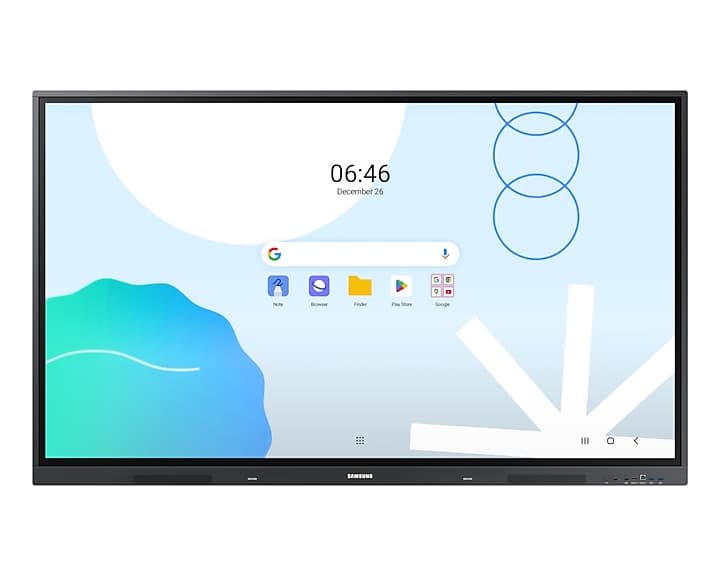

Samsung WA86D 86-inch interactive display

Overview

Samsung WA86D 86" WAD Series Interactive Display

The Samsung WA86D is an 86-inch interactive display from the WAD series, pairing a 400-nit IPS panel with infrared multitouch supporting up to 40 simultaneous points.

A 65W USB-C port combines screen mirroring, touch and laptop charging in a single cable, while an OPS expansion slot and 5x USB ports support external compute modules for standalone or PC-based use.

Specifications

Technical Overview

Model Number: LH86WADWLGCXEN
Screen Size: 86-inch
Panel Type: IPS
Resolution: 3,840 × 2,160 (4K UHD)
Brightness: 400 nit (typical)
Contrast Ratio: 1,200:1
Viewing Angle (H×V): 178° × 178°
Response Time: 8 ms
Touch Technology: Infrared, up to 40 points
Operating System: Android 13
Internal Storage: 64 GB
HDMI In: 3 (HDMI 2.0, HDCP 2.1)
USB Ports: 5 (1× USB 2.0, 4× USB 3.0)
USB-C: 1 (mirroring, touch, 65W PD charging)
RJ45 LAN: In / Out
RS232: In / Out
Wi-Fi / Bluetooth: Yes / Yes
OPS Expansion Slot: Yes
Power Consumption (On Mode): 486 W
VESA Mount: 800 × 600 mm
Weight: 56.5 kg (74.3 kg boxed)
