Overview

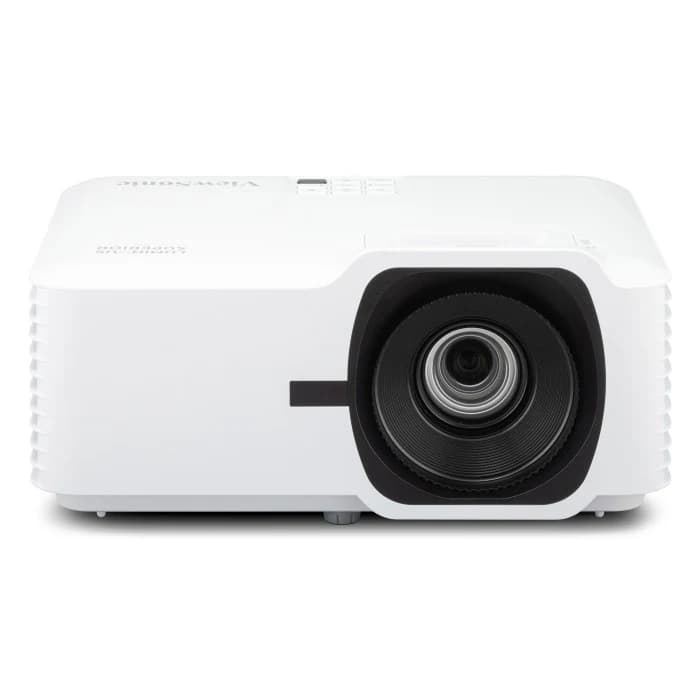

ViewSonic LS630W
The LS630W is a laser-based WXGA projector delivering 4,500 ANSI lumens with flexible installation options, built for business and educational environments that need bright images without lamp maintenance.
A laser light source rated up to 30,000 hours in Eco mode, 360° projection and 4-corner adjustment make it adaptable to unconventional mounting, while built-in LAN control integrates with Crestron, AMX, Extron and PJ Link systems.
Specifications
Technical Overview
- Resolution
- WXGA (1280 × 800)
- Brightness
- 4,500 ANSI lumens
- Contrast Ratio
- 3,000,000:1
- Light Source
- DLP Laser
- Throw Ratio
- 1.18 – 1.54 (1.3x optical zoom)
- Screen Size
- 30 – 300 inches
- Throw Distance
- 0.77 – 9.98 m (2.56 m for 100")
- Keystone
- ±30° vertical/horizontal
- HDMI Inputs
- 2 (1.4 with HDCP 1.4)
- Speaker
- 15 W mono
- Power Consumption
- 175 W typical, <0.5 W standby
- Dimensions
- 286 × 216 × 129 mm
- Weight
- 3.1 kg (6.8 lb)
- Warranty
- 3-year parts/labor, 1-year lamp
Key Features
What It Delivers
- 4,500 ANSI lumens, 3,000,000:1 contrast ratio
- Laser light source: 20,000 hrs normal, 30,000 hrs Eco mode
- 360° projection, portrait mode, 4-corner adjustment
- Golf Mode for golf simulator compatibility
- LAN control: Crestron, AMX, Extron, PJ Link, ATEN, vController
- Ceiling-mount compatible with existing Epson PowerLite 119W mounts
Get Started
Ready to Add the ViewSonic LS630W to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
