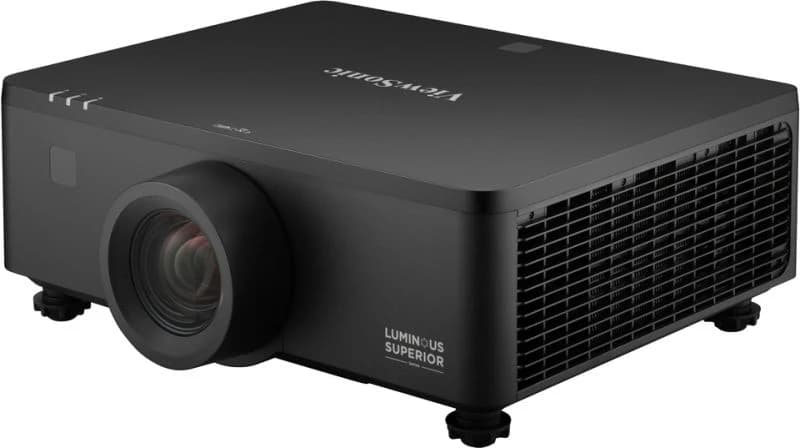

ViewSonic LS960WU
The LS960WU is the flagship of ViewSonic's Luminous Superior installation series, delivering 8,500 ANSI lumens for the largest venues and control rooms.
Motorized focus, 1.6x zoom and extensive lens shift (up to 55% vertical) simplify alignment on large screens, while HDBaseT and RJ45 LAN control integrate cleanly into centralized AV systems.
Specifications
Technical Overview
- Brightness
- 8,500 ANSI lumens (8,800 center)
- Native Resolution
- WUXGA (1920 × 1200)
- Contrast Ratio
- 3,000,000:1
- Light Source
- Laser Phosphor, 20,000 hrs normal / 30,000 hrs SuperEco
- Throw Ratio
- 1.25 – 2.00 (1.6x optical zoom)
- Lens Shift
- H: ±25%, V: ±55%
- Connectivity
- 2× HDMI 2.0, HDBaseT, RS232, RJ45, USB-A
- Dimensions
- 486 × 433 × 186 mm
- Weight
- 13.7 kg (30.2 lb)
Key Features
What It Delivers
- 8,500 ANSI lumens, WUXGA resolution
- 3,000,000:1 contrast ratio
- 1.6x motorized zoom with wide lens shift (V: ±55%, H: ±25%)
- HDBaseT input for uncompressed HD over network cable
- Laser light source: 20,000 hrs normal, 30,000 hrs SuperEco
