Overview

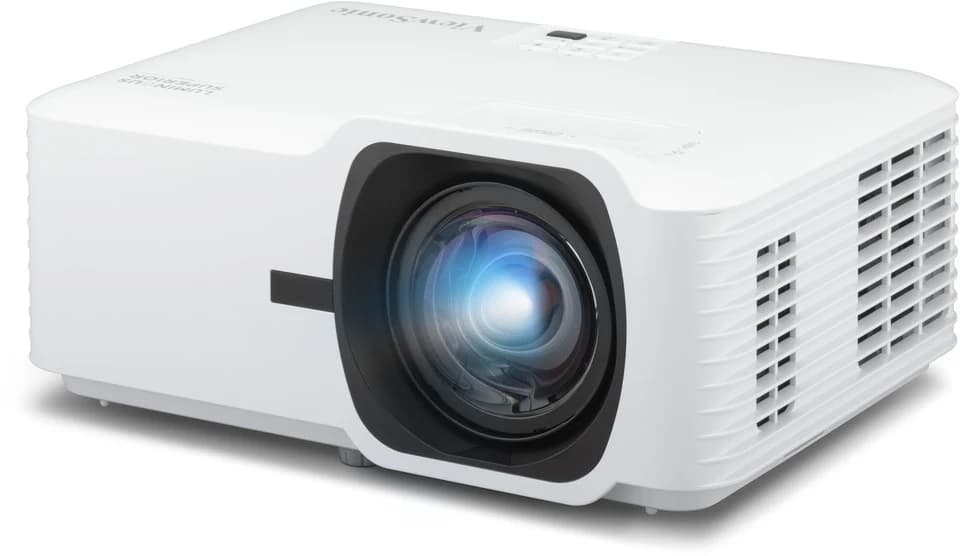

ViewSonic LSD400HD-ST
The LSD400HD-ST pairs 3rd-generation laser phosphor technology with a 0.5 short-throw ratio, projecting a 100-inch image from just 1.1 meters — well suited to rooms where a standard-throw projector can't be mounted far enough back.
A filter-free, IP6X-sealed engine keeps maintenance minimal, while low 16.7ms input lag and Golf Mode make it equally capable for interactive presentations and golf simulator installations.
Specifications
Technical Overview
- Projection System
- 0.65-inch 1080P DMD
- Native Resolution
- 1920 × 1080
- Brightness
- 4,000 ANSI lumens (4,800 center)
- Contrast Ratio
- 3,000,000:1
- Light Source Life
- 20,000 hrs normal, 30,000 hrs Eco
- Throw Ratio
- 0.5
- Image Size
- 40 – 300 inches
- Throw Distance
- 0.44 – 3.29 m (100" @ 1.10 m)
- Keystone Correction
- H: ±15°, V: ±15°
- Input Lag
- 16.7 ms
- HDMI Inputs
- 2× HDMI 2.0, HDCP 2.2
- Control
- RS232, RJ45 (LAN), USB-A
- Power Consumption
- 143 W normal, <0.5 W standby
- Weight
- 3.1 kg net
Key Features
What It Delivers
- 3rd-generation laser phosphor, 20% brighter, 32% more compact
- 0.5 short-throw ratio — 100" image from 1.1m
- Filter-free IP6X sealed engine, minimal maintenance
- 16.7ms input lag for responsive interactive use
- Up to 59% lower power consumption than lamp-based projectors
- Crestron, Q-SYS, AMX, PJ Link, ATEN, Extron control compatible
Get Started
Ready to Add the ViewSonic LSD400HD-ST to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
