Crestron UC-B70-A-T

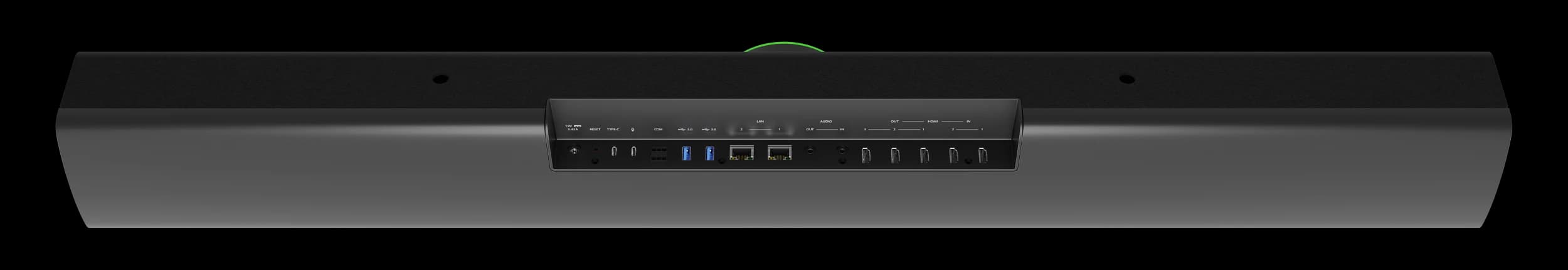

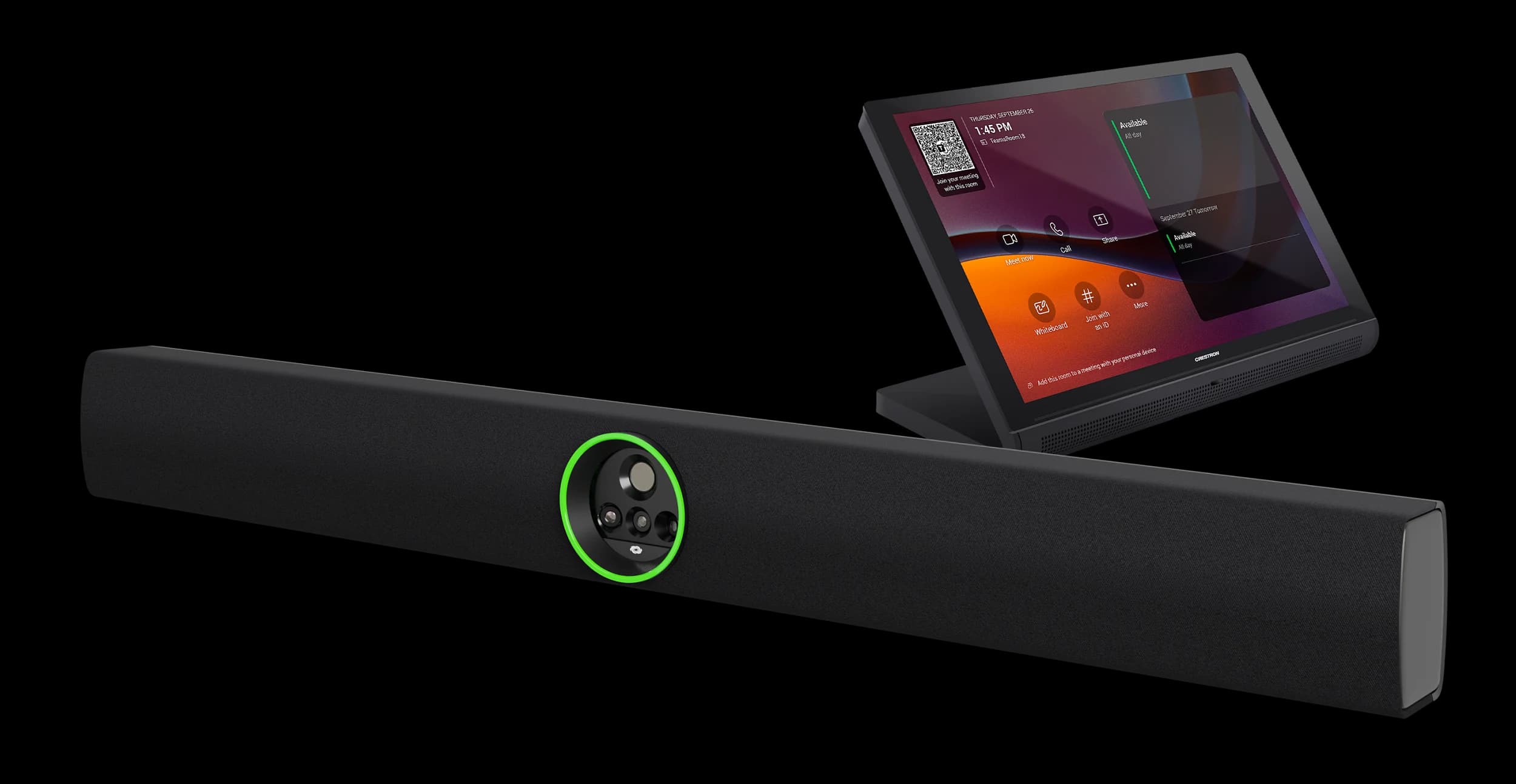

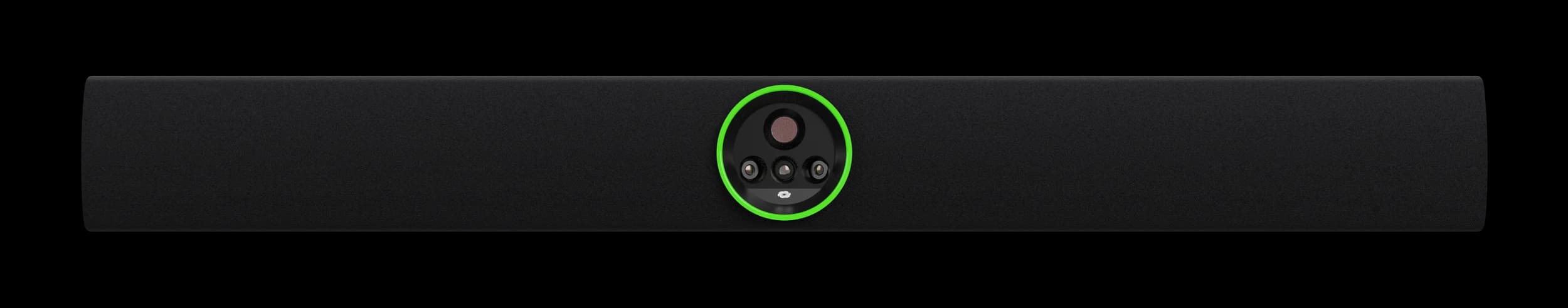

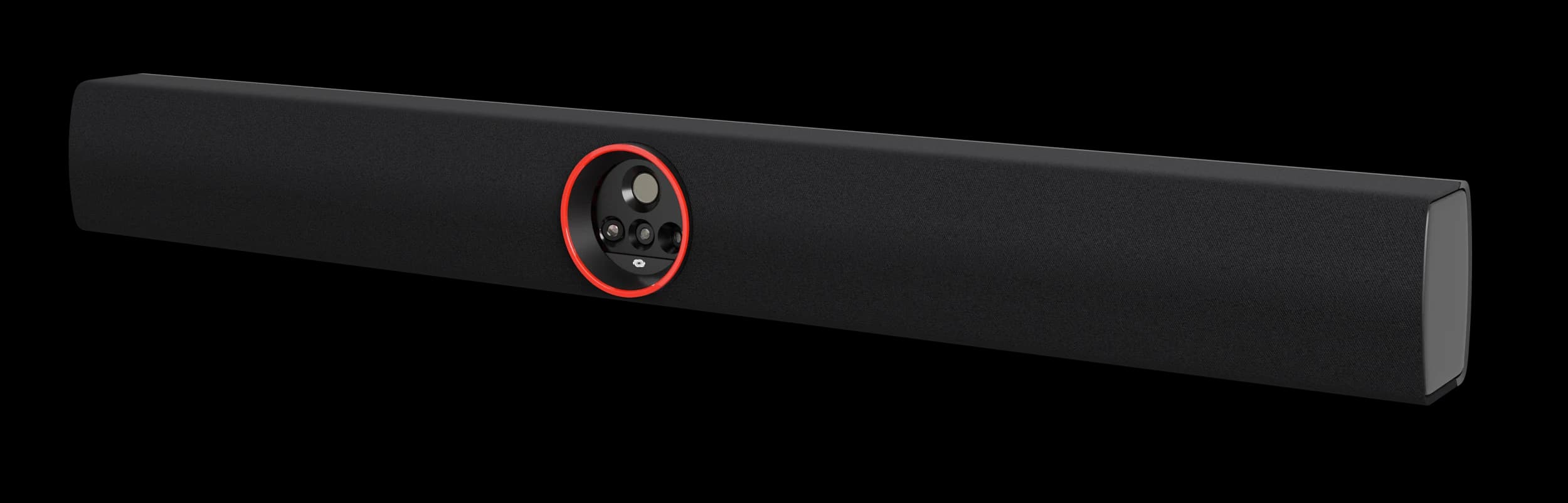

The Crestron UC-B70-A-T is a Crestron Flex tabletop conferencing system for medium to large rooms running Microsoft Teams Rooms. The kit contains a 10 in. tabletop touch screen, a Crestron Videobar 70 with tilting wall bracket, and a PoE injector.

The Videobar 70 uses a quad-camera configuration with a 20-megapixel main camera, a 24-microphone linear array with adaptive beamforming, and dual 10-watt speakers. It supports up to two video displays (not included).

Specifications

Technical Overview

Included Components: 10 in. tabletop touch screen (TS-1070-B-S-T-A); Crestron Videobar 70; PoE injector (PWE-4803RU); Ethernet and HDMI 2.1 cables
Videobar Cameras: Quad-camera configuration: main camera plus left, centre and right sub-cameras; main camera 20 MP, 1-inch sensor
Speakers: Dual 10-watt speakers
Microphone: 24-microphone linear array
Audio DSP: Acoustic echo cancellation, dereverberation, AGC, dynamic noise suppression, adaptive beamforming, speaker EQ and limiting
Touch Screen: 10 in. diagonal capacitive multi-touch TFT, 1920 × 1200
Power over Ethernet: IEEE 802.3at Type 2 PoE+ PD; 15 W normal (LLDP), 30 W Class 4 without LLDP
Connectors: 2 × USB 3.0 Type-A (reserved); 2 × USB 3.1 Type-C (BYOD)
Dimensions (touch screen): 5.29 in H × 9.63 in W × 4.67 in D (134 × 245 × 119 mm)
Weight (touch screen): 2.44 lb (1.10 kg)
