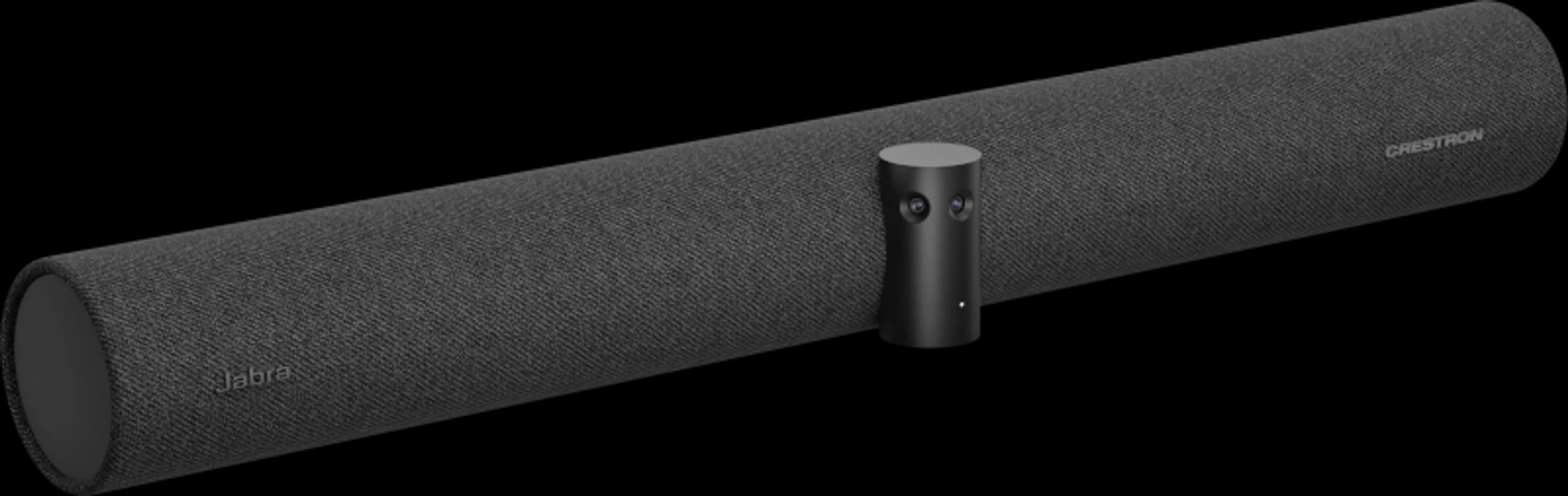

Crestron UC-SB-P50

The Crestron UC-SB-P50 is the Jabra PanaCast 50 intelligent video bar offered in the Crestron Flex range. It combines three built-in conferencing cameras, speakers and an 8-microphone beamforming array in one front-of-room device.

The cameras capture the room in a 180° horizontal field of view at 3840 × 1080 and 30 fps, with 6x lossless digital zoom that adjusts to frame all participants. It is suited to rooms up to 15 × 15 ft.

Specifications

Technical Overview

Cameras: 3 × 13 MP; 3840 × 1080 at 30 fps
Field of View: 180° horizontal, 54° vertical
Zoom: 6x lossless digital zoom with automatic framing
Speakers: 2 × 2 in. woofers, 2 × ¾ in. tweeters; 80 Hz to 20 kHz
Microphone: 8-element beamforming array; suitable for rooms up to 15 × 15 ft (4.5 × 4.5 m)

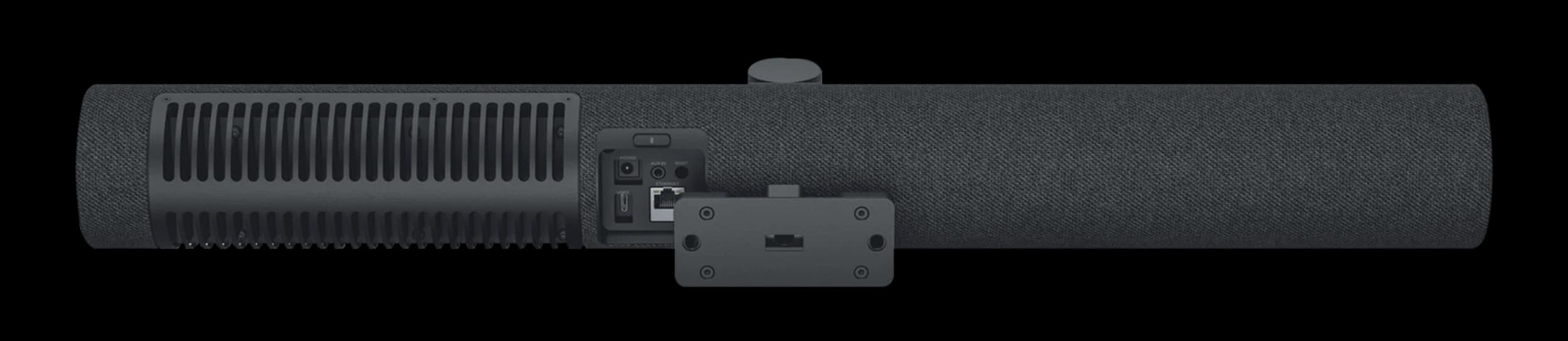

Connectors: USB-C; 3.5 mm AUX (future use); AC power input
Power: External power pack, 100–240 VAC input; 12 V 5 A output
Dimensions: 3.1 in H × 25.60 in W × 4.90 in D (90 × 650 × 125 mm), excluding stand or screen mount
Weight: 4.85 lb (2.2 kg)
Operating Temperature: 41°F to 95°F (5°C to 35°C)
Mounting: Integrated wall-mount bracket; table stand or VESA mount sold separately
