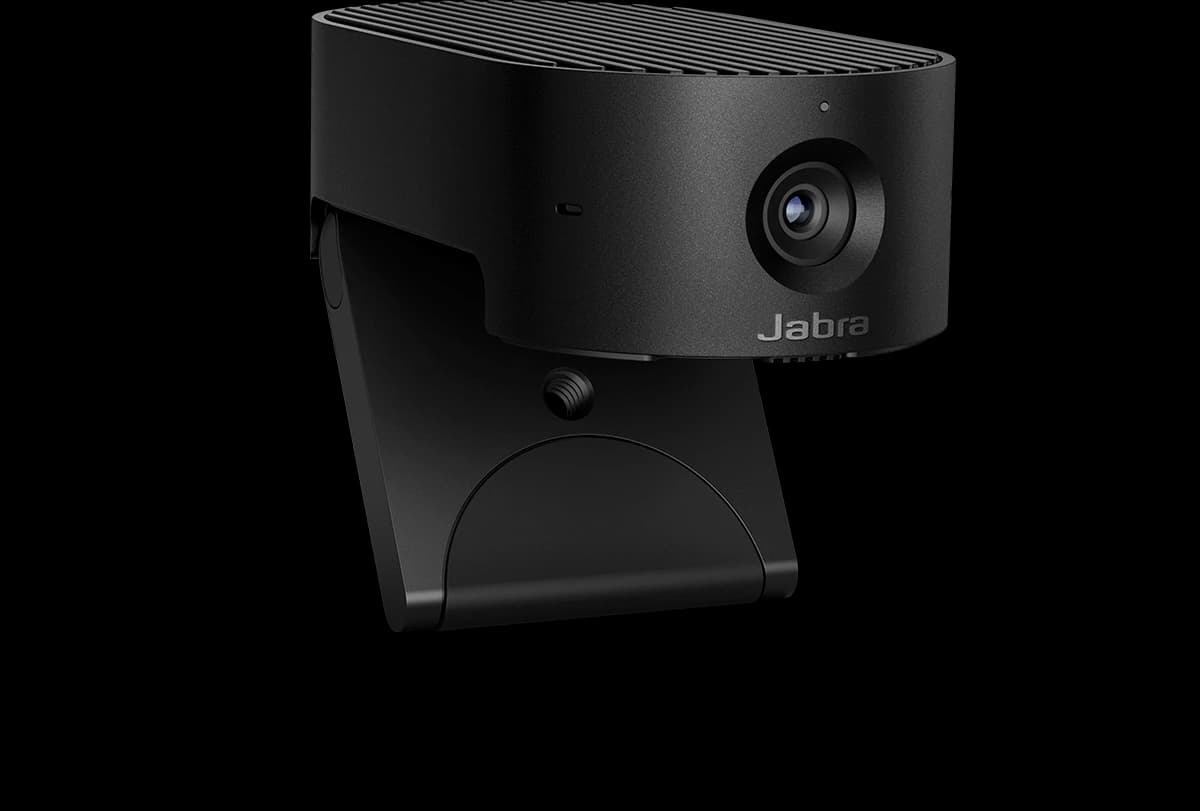

Jabra PanaCast 20
Jabra PanaCast 20 is a personal video camera built around a single 13-megapixel, 1/3.2-inch sensor capable of 4K Ultra-HD capture at 3840×2160/30fps, alongside 1080p and 720p modes. Its 2.26mm lens delivers a 117-degree diagonal field of view (90° horizontal, 75° vertical), and the camera supports up to 3x lossless digital zoom at 720p along with manual pan-tilt-zoom control and vivid HDR with picture-in-picture.
Three integrated MEMS microphones with -37dBFS sensitivity and a 100Hz–8000Hz frequency range provide onboard audio pickup, and the camera connects over USB-C with USB 3.0/2.0 and UVC 1.1 support. It's managed through Jabra Direct and Jabra Xpress, is SDK-enabled for custom integrations, and is compatible with Windows 8.1 through 11 and macOS 10.15 and later — making it a straightforward, plug-and-play option for individual desks or small huddle points.
Technical Overview
- Box Contents
- PanaCast 20, carry case, USB-C to USB-A cable 1.5m/4.9ft (USB 3.0)
- Weight
- 136g
- Warranty
- 2 years
- Camera Resolution
- 13 megapixels
- Image Sensor
- 1/3.2"
- Zoom
- Up to 3x lossless digital zoom at 720p
- Field of View
- Horizontal: 90°, Vertical: 75°, Diagonal: 117°
- Resolution Capabilities
- 4K Ultra-HD: 3840 x 2160 @ 30 fps; 1080p Full HD: 1920 x 1080 @ 30 fps; 720p HD: 1280 x 720 @ 30 fps
- Focal Length
- 2.26mm
- Aperture
- 2.25
- Microphone Type
- MEMS
- Number of Microphones
- 3
- Microphone Sensitivity
- -37dBFS
- Frequency Range
- 100Hz – 8000Hz
- Compatible OS
- Windows 11, Windows 10, Windows 8.1 (64-bit and 32-bit), macOS 10.15 and later
- Compatible Software
- Jabra Direct, Jabra Xpress
- SDK Available
- Yes
- Connectivity Type
- USB-C
- Supported USB Versions
- USB 3.0, USB 2.0
- UVC Versions
- 1.1
- Operating Temperature
- 5°C to 35°C
- Storage Temperature
- -20°C to 60°C
What It Delivers
- 13-megapixel sensor with 4K Ultra-HD (3840×2160@30fps) capture
- 117° diagonal field of view (90° horizontal, 75° vertical)
- Up to 3x lossless digital zoom at 720p
- Manual pan-tilt-zoom and intelligent zoom controls
- Vivid HDR with picture-in-picture
- 3 integrated MEMS microphones
- Managed via Jabra Direct / Jabra Xpress; SDK available
