Yealink MeetingBar A20

The Yealink MeetingBar A20 is an all-in-one Android video collaboration bar for small-to-medium rooms, integrating a computing unit, camera, microphones, speaker, Wi-Fi and Bluetooth into a single enclosure for simple deployment.

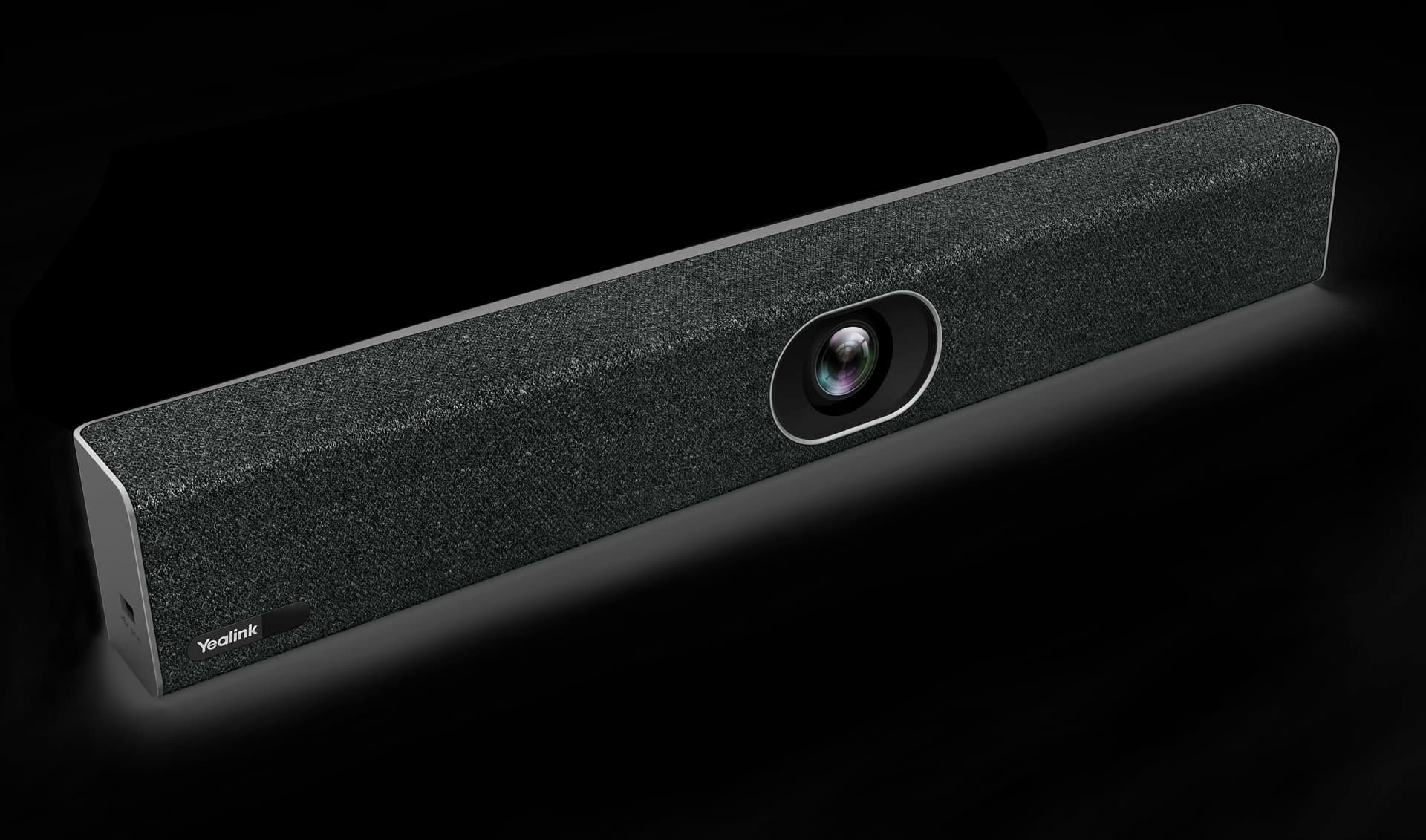

A 20MP camera with a 120° wide-angle lens and electric privacy shutter delivers 4K-capable video with AI auto-framing and speaker tracking, while an 8-element MEMS microphone array with AI-based noise-proof technology and full-duplex audio ensures clear pickup in small rooms. The A20 supports content sharing and whiteboarding, and is certified for Microsoft Teams, Zoom, BlueJeans and RingCentral.

Specifications

Technical Overview

Camera: 20MP, 120° Field of View, 8x e-PTZ, Electric Privacy Shutter
Camera Field of View: 120° DFOV, 110° HFOV, 73° VFOV
AI Camera Features: Auto Framing, Speaker Tracking, Picture-in-Picture, Multi-Focus Framing, Smart Gallery (Zoom)
Microphones: Built-in 8-Element MEMS Array, AI Noise-Proof Technology
Microphone Frequency Response: 100 Hz to 8 kHz
Speaker: Built-in 5W High-Fidelity Speaker
Audio Features: Full Duplex, AGC, Echo Cancellation
Operating System: Android 10.0
Platform Support: Microsoft Teams, Zoom, BlueJeans, RingCentral
Wireless: Built-in Dual-Band Wi-Fi (2.4/5 GHz), Bluetooth
Content Sharing: Wired via VCH51 Sharing Kit, Wireless via WPP30 (optional)

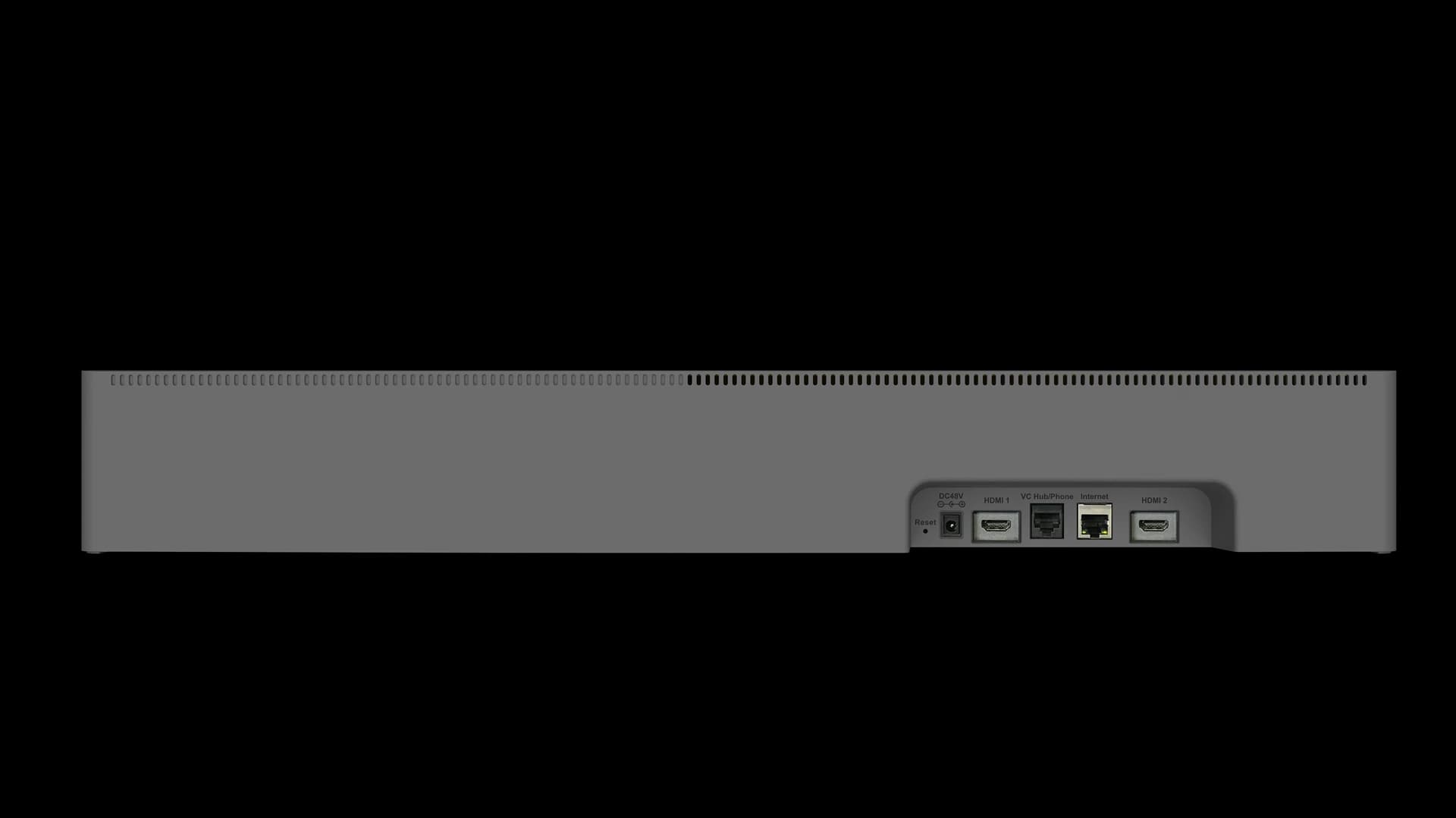

Ports: 2x HDMI Output (CEC), HDMI Input (via VCH51), 1x USB 2.0, 1x Gigabit Ethernet, 1x VCH Port (RJ-45), Power
Storage: Built-in 64GB
Power: AC 100-240V Input, DC 48V/0.7A Output; Idle <10W, Normal 10.5W, Max 14W
Dimensions (W x D x H): 600 x 68 x 82 mm
Net Weight: 2.892 kg
Operating Temperature: 0 to 40°C
Operating Humidity: 10-95%

Key Features

What It Delivers

20MP camera, 120° field of view, 8x e-PTZ, electric privacy shutter
AI auto-framing, speaker tracking, picture-in-picture, multi-focus framing
8 built-in MEMS microphone array with AI noise-proof technology
Built-in 5W speaker, full-duplex audio, echo cancellation
Built-in dual-band Wi-Fi and Bluetooth
Certified for Microsoft Teams Rooms, Zoom Rooms, BlueJeans and RingCentral
