Overview

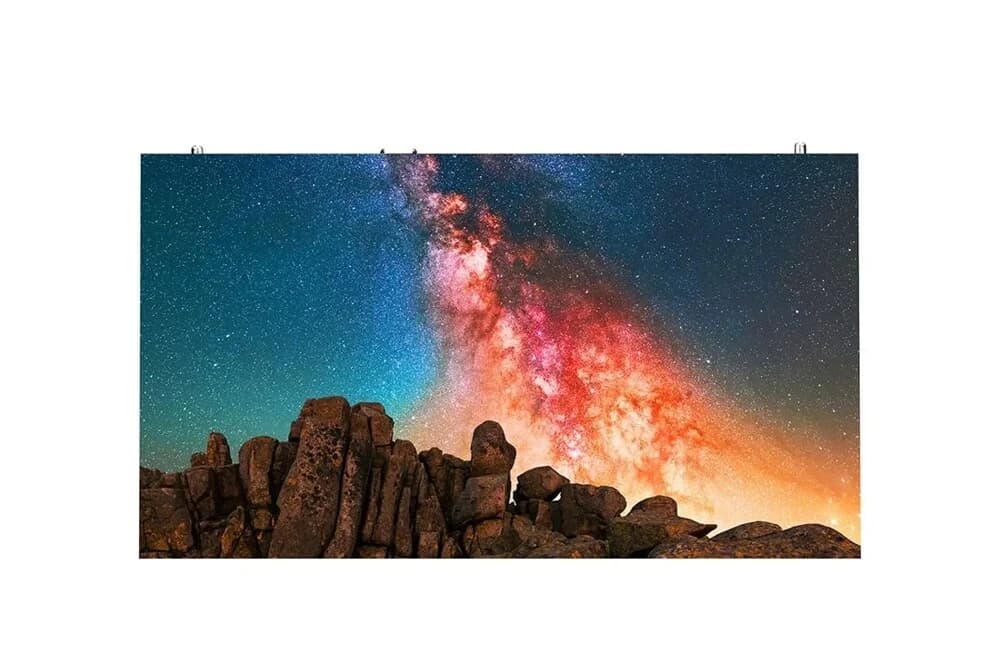

LG MAGNIT LSAQ009
The LG MAGNIT LSAQ009 pushes into sub-millimeter territory with a 0.94mm pixel pitch, built on LG's MicroLED Chip Transfer and Surface Treatment technology for uniform color from wide viewing angles.
A remote power supply unit installs separately from the screen and supports hot-swappable redundancy, so a failed power module can be replaced without interrupting the display.
Specifications
Technical Overview
- Pixel Pitch
- 0.94 mm
- Cabinet Resolution
- 640 × 360
- Max Brightness
- Up to 600 nits
- Contrast Ratio
- 100,000:1
- Refresh Rate
- 3,840 Hz
- Viewing Angle
- 160° H × 160° V
- Power Consumption
- 67 W max per cabinet, 40 W avg
- Cabinet Weight
- 6.8 kg
- Cabinet Dimensions
- 600 × 340.4 × 45.7 mm
- IP Rating
- IP50 front / IP20 rear
Key Features
What It Delivers
- 0.94mm MicroLED pixel pitch
- Remote, hot-swappable power supply with redundancy
- IP50 front / IP20 rear protection
- Wide-angle color uniformity via Chip Transfer technology
- 100,000:1 contrast ratio
- 3,840Hz refresh rate
Get Started
Ready to Add the LG MAGNIT LSAQ009 to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
