Overview

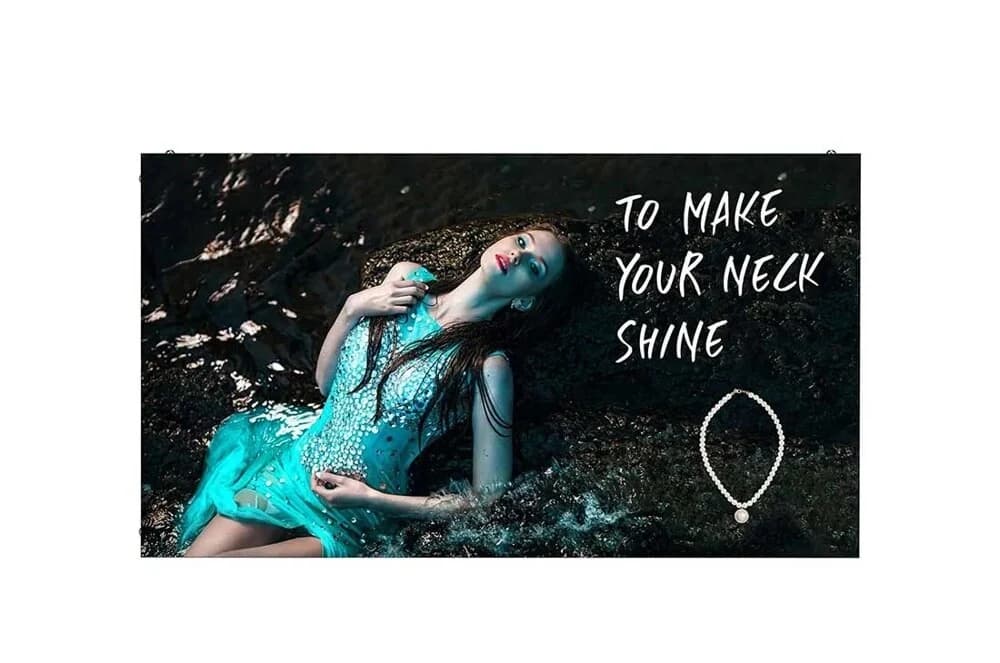

LG LSCB012
The LG LSCB012 is a 1.25mm fine-pitch LED cabinet from LG's Ultra Slim series, built for close-viewing indoor canvases where a completely seamless image matters.
A slim 34mm depth and front-access module design keep installation and maintenance simple, while an embedded backup PSU protects uptime for always-on deployments.
Specifications
Technical Overview
- Pixel Pitch
- 1.25 mm
- Max Brightness
- 800 nits (after calibration)
- Contrast Ratio
- 5,000:1
- Viewing Angle
- 160° H × 160° V
- Refresh Rate
- 3,840 Hz
- Cabinet Resolution
- 240 × 270 px
- Cabinet Dimensions
- 600 × 337.5 × 34 mm
- Cabinet Weight
- 2.83 kg
- Power Consumption
- 150 W max per cabinet
- IP Rating
- IP30 front / IP30 rear
Key Features
What It Delivers
- 1.25mm fine pixel pitch for close-viewing clarity
- Ultra-slim 34mm cabinet depth
- Front-access module and PSU serviceability
- Embedded backup power supply
- 160° × 160° viewing angle
- 3,840Hz refresh rate
Get Started
Ready to Add the LG LSCB012 to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
