Overview

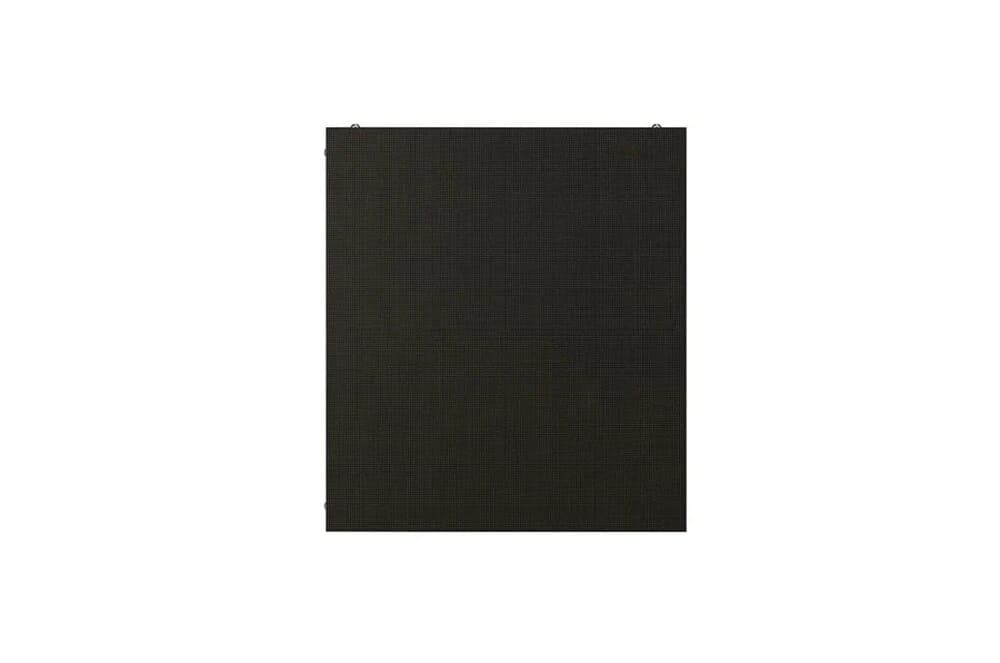

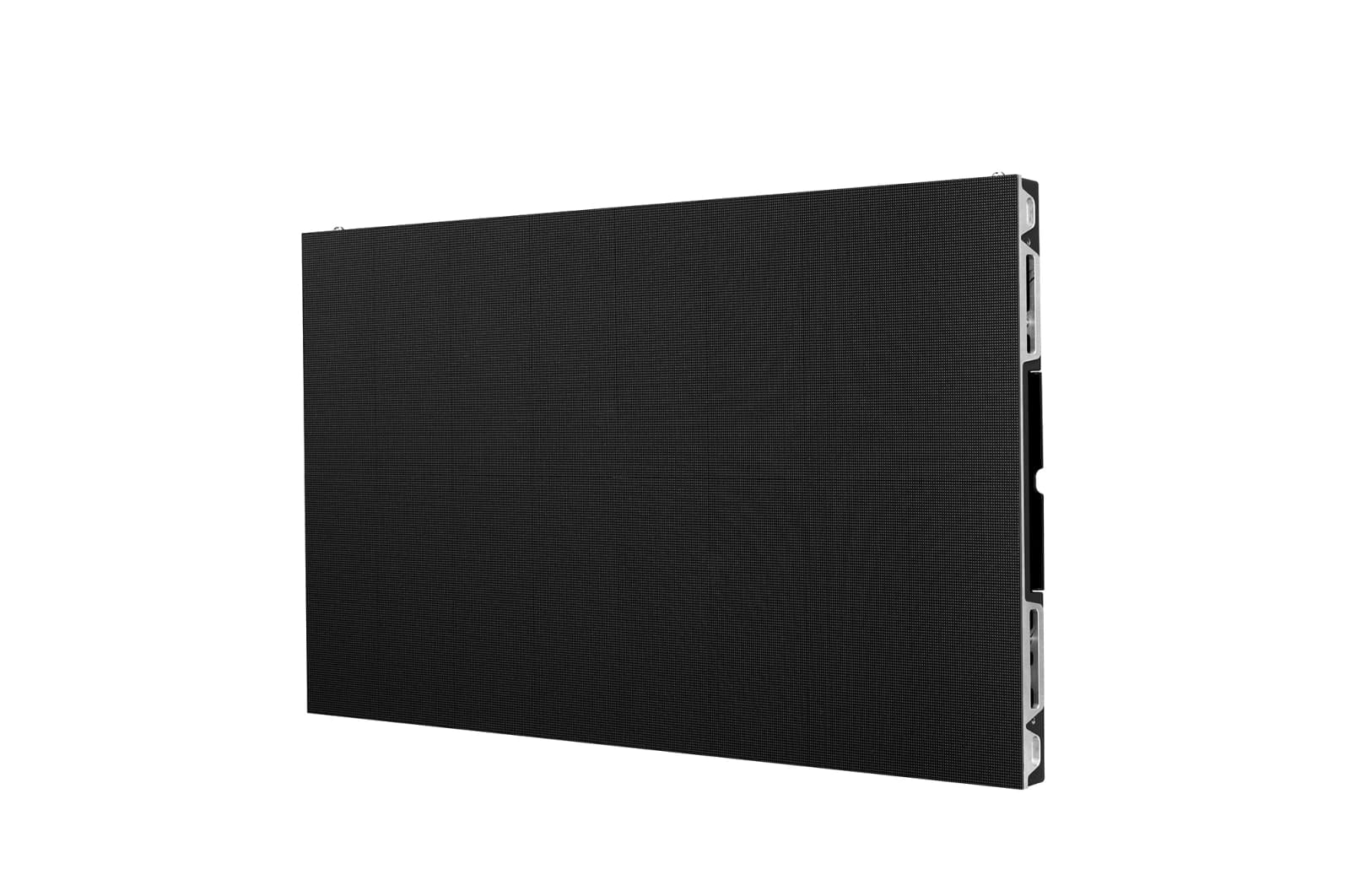

LG LSCB015
The LG LSCB015 offers a 1.56mm pixel pitch that balances image resolution and cost for mid-range indoor video wall installations.
Built on the same Ultra Slim platform as the rest of the LSCB range, it combines a compact cabinet profile with EMC-certified, fire-resistant construction for demanding commercial spaces.
Specifications
Technical Overview
- Pixel Pitch
- 1.56 mm
- Max Brightness
- 800 nits (after calibration)
- Contrast Ratio
- 5,000:1
- Viewing Angle
- 160° H × 160° V
- Refresh Rate
- 3,840 Hz
- Cabinet Resolution
- 192 × 216 px
- Cabinet Dimensions
- 300 × 337.5 × 34 mm
- Cabinet Weight
- 2.77 kg
- Power Consumption
- 75 W max per cabinet
- IP Rating
- IP30 front / IP30 rear
Key Features
What It Delivers
- 1.56mm fine pixel pitch
- Ultra-slim cabinet depth
- EMC certified, fire-resistant construction
- Front-accessible service access
- 160° × 160° viewing angle
- 3,840Hz refresh rate
