Overview

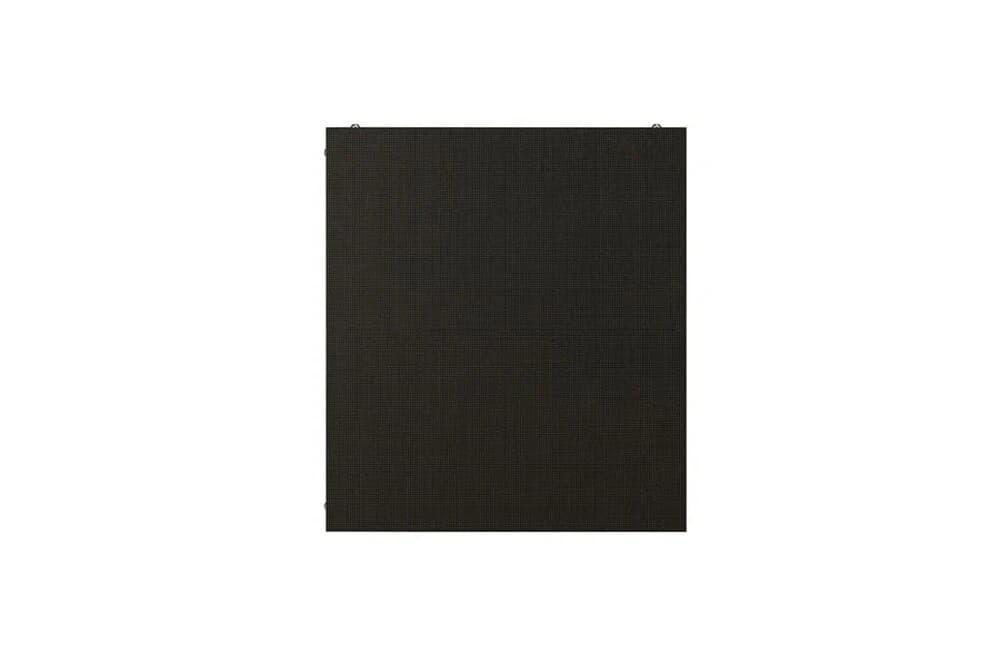

LG LSCB018
The LG LSCB018 is a 1.88mm half-width cabinet from the Ultra Slim series, using copper connectors for improved durability across large, continuously-run installations.
Its compact half-size module simplifies transport and on-site handling without sacrificing the seamless tiling and front-service design of the wider LSCB range.
Specifications
Technical Overview
- Pixel Pitch
- 1.88 mm
- Max Brightness
- 800 nits (after calibration)
- Contrast Ratio
- 5,000:1
- Viewing Angle
- 160° H × 160° V
- Refresh Rate
- 3,840 Hz
- Cabinet Resolution
- 160 × 180 px
- Cabinet Dimensions
- 300 × 337.5 × 34 mm
- Cabinet Weight
- 2.69 kg
- Power Consumption
- 75 W max per cabinet
- IP Rating
- IP30 front / IP30 rear
Key Features
What It Delivers
- 1.88mm fine pixel pitch
- Half-width cabinet with copper connectors

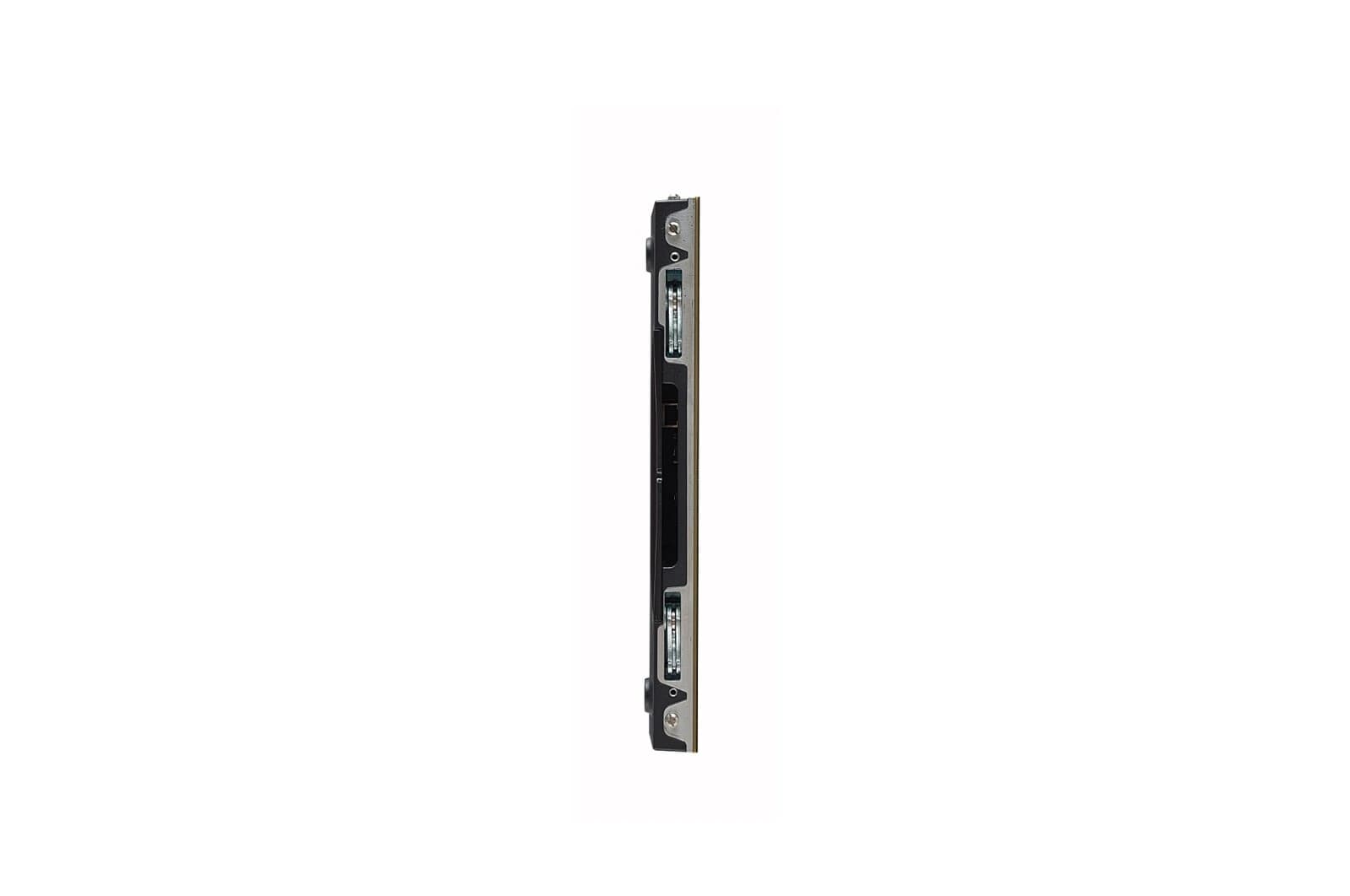

- Ultra-slim depth for flush wall mounting
- Front-access module serviceability
- 160° × 160° viewing angle
- 3,840Hz refresh rate
Get Started
Ready to Add the LG LSCB018 to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
