Overview

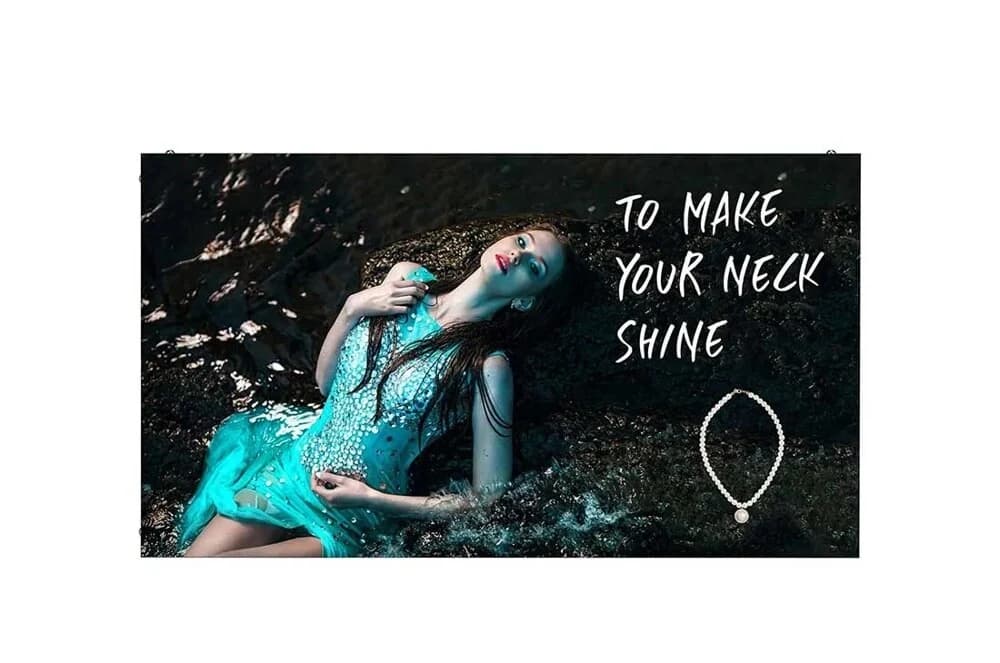

LG LSCB025
The LG LSCB025 steps up to a 2.5mm pixel pitch, making it a cost-effective choice for large-scale indoor canvases viewed from a greater distance.

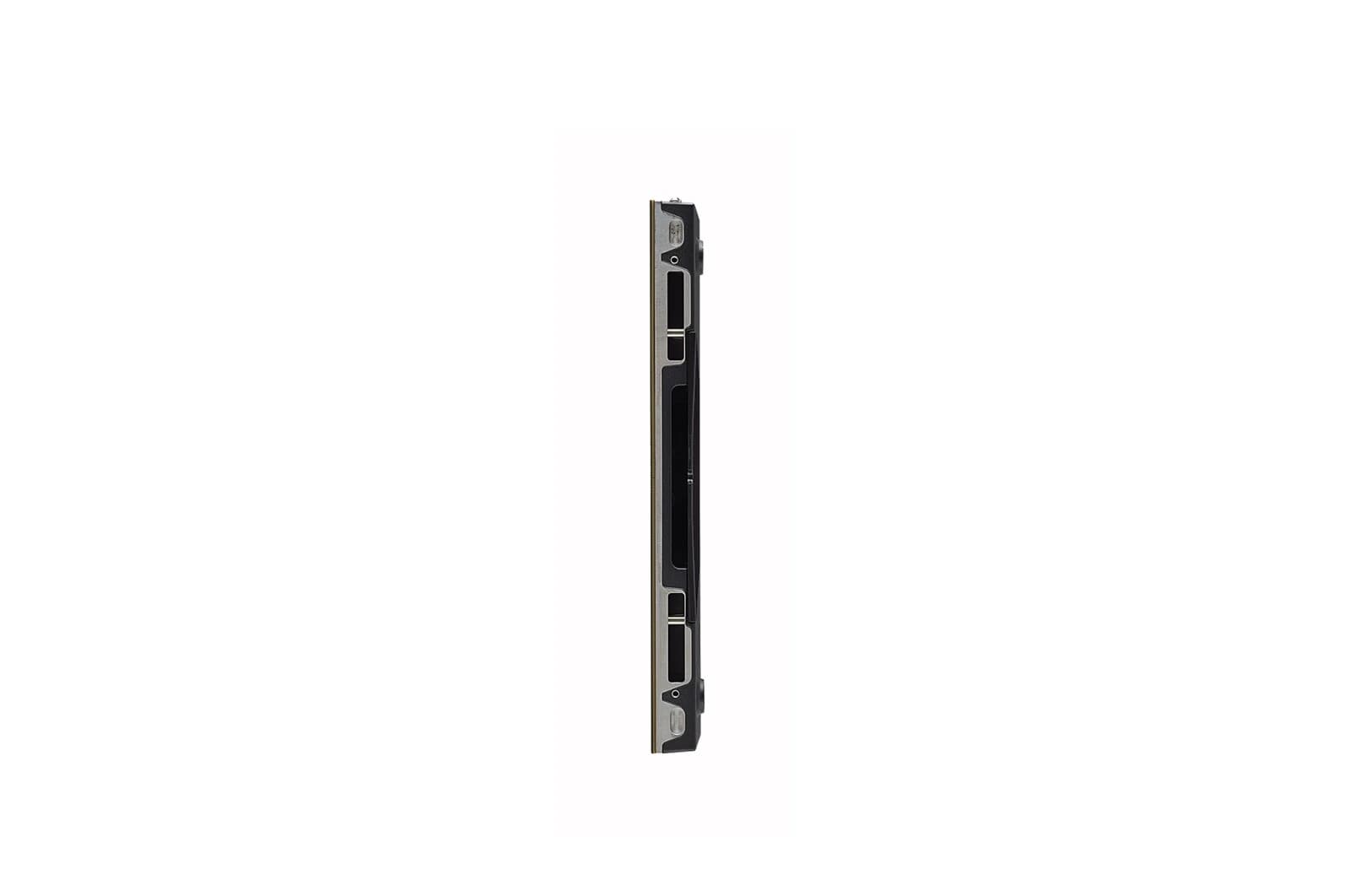

It shares the Ultra Slim series' 34mm cabinet depth and front-service design, so it tiles into the same installation workflow as LG's finer-pitch LSCB models.
Specifications
Technical Overview
- Pixel Pitch
- 2.5 mm
- Max Brightness
- 800 nits (after calibration)
- Contrast Ratio
- 5,000:1
- Viewing Angle
- 160° H × 160° V
- Refresh Rate
- 3,840 Hz
- Cabinet Resolution
- 120 × 135 px
- Cabinet Dimensions
- 600 × 337.5 × 34 mm
- Cabinet Weight
- 2.74 kg
- Power Consumption
- 100 W max per cabinet
- IP Rating
- IP30 front / IP30 rear
Key Features
What It Delivers
- 2.5mm pixel pitch for large-scale canvases
- Ultra-slim 34mm cabinet depth
- Front-access module and PSU serviceability
- Embedded backup power supply
- 160° × 160° viewing angle
- 3,840Hz refresh rate
Get Started
Ready to Add the LG LSCB025 to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
