Samsung IE020A

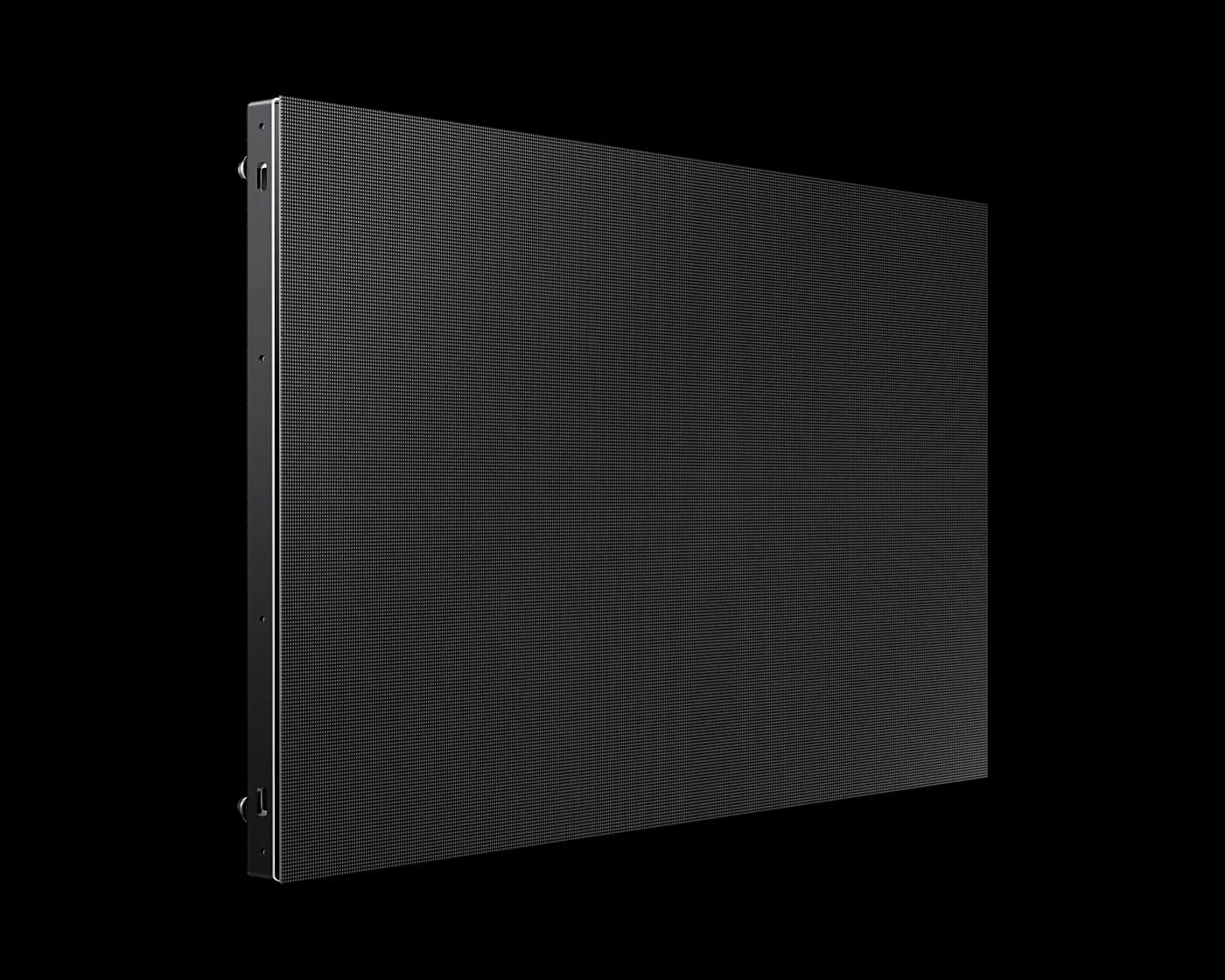

The Samsung IE020A is a 2.0mm pixel pitch indoor direct-view LED cabinet from the IEA series, suited to mid-distance viewing in lobbies, retail environments and control rooms.

Each cabinet measures 960 × 540mm and carries a 480 × 270px resolution; a complete video wall is built by tiling multiple IE020A cabinets to the required size — for example, a 5×5 cabinet grid forms a 217"-class 16:9 wall, while a 6×6 grid forms a 260"-class wall. (These two wall sizes correspond to the ERP catalogue entries IE020A-217 and IE020A-260, which are configurations of this same cabinet rather than separate models.)

As with the rest of the IEA line, the IE020A supports landscape, portrait, curved and L-shaped layouts, with factory and real-time sub-pixel calibration for uniform color across the finished wall.
