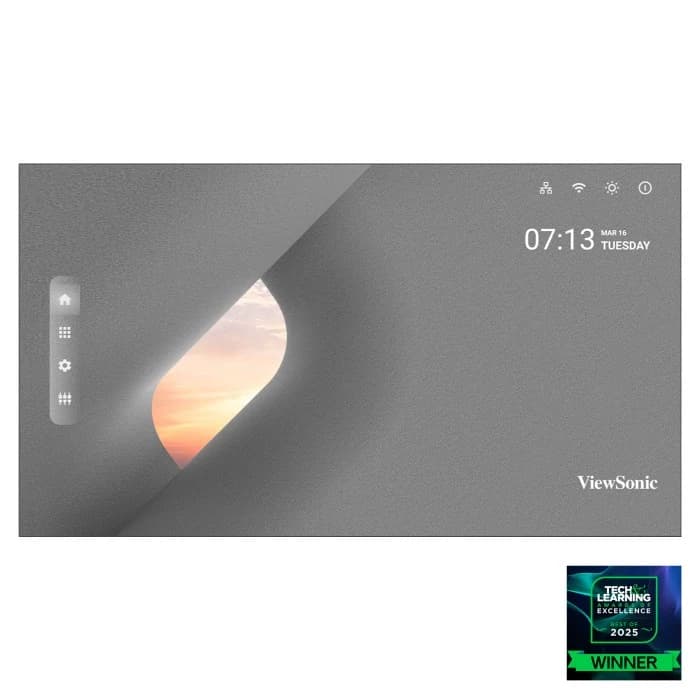

ViewSonic LDM136-151
The ViewSonic LDM136-151 is a 136-inch all-in-one Full HD direct view LED display built for mainstream video wall installs, integrating the LED panel, power and control system into a single cabinet.
A slim 31mm profile and detachable control bar (mountable up to 30 feet away) keep the install clean, while 24/7-rated operation suits always-on corporate and control-room environments.
Specifications
Technical Overview
- Screen Size
- 136-inch
- Resolution
- 1,920 × 1,080 (Full HD)
- Pixel Pitch
- 1.56 mm
- Brightness
- 600 nits (100 levels adjustable)
- Contrast Ratio
- 6,500:1 static
- Refresh Rate
- 3,840 Hz
- Viewing Angle
- 170° H × 170° V
- Power Consumption
- 609 W typical, 1,740 W max
- Dimensions
- 3,012 × 1,833.5 × 31 mm
- Net Weight
- 162 kg
- Grayscale
- 13-bit
- Lifespan
- 100,000 hours
Key Features
What It Delivers
- 136-inch all-in-one Full HD direct view LED
- 1.56mm pixel pitch, 3,840Hz refresh
- Slim 31mm cabinet profile
- Detachable, remote-mountable control bar
- 24/7 rated operation
- 100,000-hour LED lifespan
