Overview

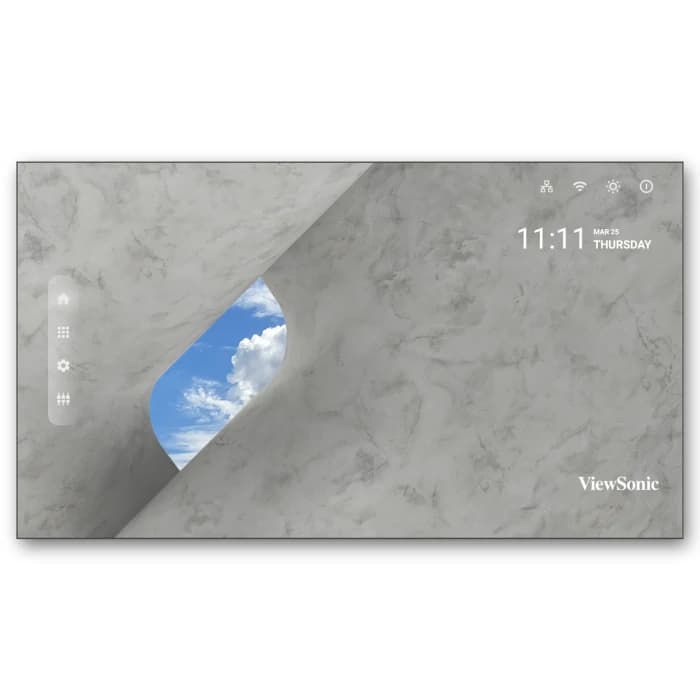

ViewSonic LDP163-091C
The ViewSonic LDP163-091C is a 163-inch premium all-in-one direct view LED display built on Chip-on-Board technology, delivering 4K UHD resolution at a 0.93mm pixel pitch behind a 5mm frameless edge.
A detachable system control box, 178° viewing angles and IP54/IK08-rated front protection make it a durable, boardroom-ready alternative to a tiled LCD video wall, with power and control fully integrated into the cabinet.
Specifications
Technical Overview
- Screen Size
- 163-inch
- Resolution
- 3,840 × 2,160 (4K UHD)
- Pixel Pitch
- 0.93 mm
- Brightness
- 600 nits
- Contrast Ratio
- 10,000:1
- Refresh Rate
- 3,840 Hz
- Viewing Angle
- 178° H × 178° V
- Power Consumption
- 647 W typical, 2,154 W max
- Dimensions
- 3,612 × 2,171 × 41 mm
- Net Weight
- 232 kg
- IP Rating
- IP54 front
- Impact Rating
- IK08 front
- Lifespan
- 100,000 hours
Key Features
What It Delivers
- 163-inch 4K UHD COB direct view LED
- 0.93mm pixel pitch, 5mm frameless edge
- 3,840Hz refresh rate, 10,000:1 contrast
- Detachable system control box
- IP54 dust / IK08 impact rated front
- Portrait or landscape installation
Get Started
Ready to Add the ViewSonic LDP163-091C to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
