Overview

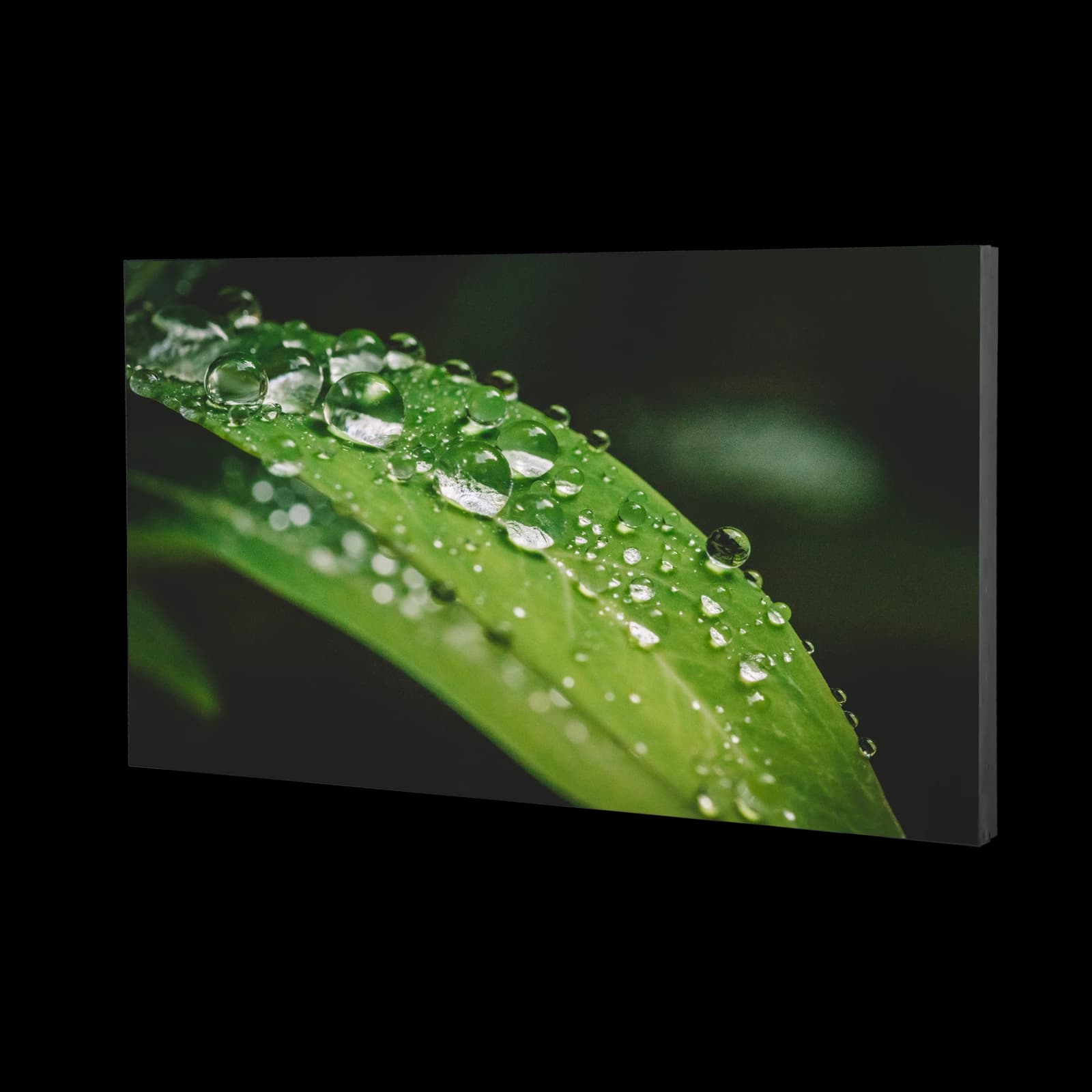

Dahua LS550UEH-UG
The LS550UEH-UG is a 55-inch industrial-grade IPS LCD video wall unit built for continuous 24/7 operation in surveillance centers, command centers and large-format commercial displays.
An ultra-narrow 0.88mm bezel-to-bezel design keeps tiled arrays visually seamless, with factory calibration for color uniformity and built-in 3D noise reduction and picture-splicing for multi-screen layouts.
Specifications
Technical Overview
- Diagonal Size
- 55-inch (16:9)
- Panel Type
- IPS
- Resolution
- 1920 × 1080 (FHD)
- Bezel Width
- 0.44 mm per side (0.88 mm combined)
- Brightness
- 700 cd/m²
- Contrast Ratio
- 1100:1
- Viewing Angle
- H178°, V178°
- Inputs
- VGA, DVI-D, 2× HDMI, DisplayPort, RS232, Audio, IR
- Power Consumption
- 150 W typical, 205 W max
- Net Weight
- 24.5 kg
- Dimensions
- 1210.5 × 681.2 × 117.4 mm
- VESA Mount
- 600 × 400 mm, M6
Key Features
What It Delivers
- Industrial-level IPS panel rated for continuous 24/7 operation
- Ultra-narrow 0.88mm bezel-to-bezel tiling
- Factory calibration for high color uniformity across tiles
- Built-in 3D noise reduction and picture splicing
- 4K@60Hz input support via DisplayPort or HDMI
- Dual control: infrared and RS232
