Overview

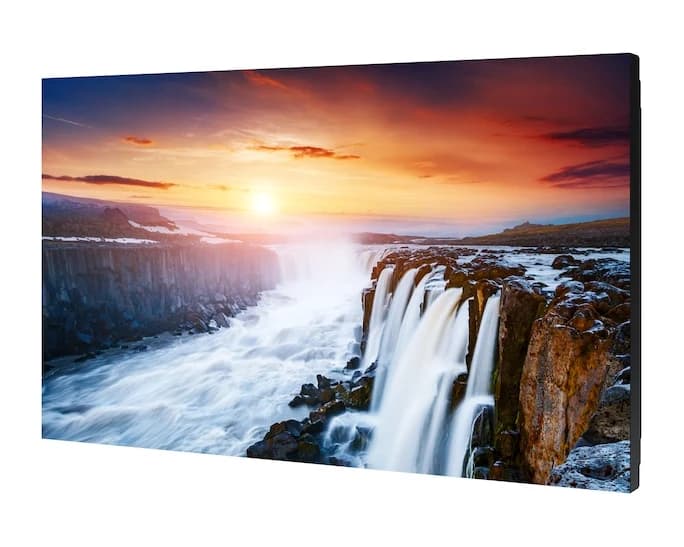

Samsung VH55R-R
The Samsung VH55R-R is a 55-inch video wall display built for continuous, always-on operation, pairing Direct LED backlighting with a razor-narrow bezel for visually seamless tiled arrays.
Designed for demanding environments such as control rooms and broadcast backdrops, it delivers consistent brightness and color uniformity across large multi-panel canvases while remaining simple to install and manage at scale.
Specifications
Technical Overview
- Screen Size
- 55-inch
- Resolution
- 1,920 × 1,080 (FHD)
- Backlight
- Direct LED
- Pixel Pitch
- 0.63mm × 0.63mm
- Brightness
- 700 nits (max)
- Contrast Ratio
- 1,100:1 (30,000:1 dynamic)
- Viewing Angle
- 178° H × 178° V
- Response Time
- 8 ms
- Connectivity
- 2× HDMI, DisplayPort 1.2, DVI, USB, RS232, RJ45
- Power Consumption
- 270 W (on mode), 0.5 W (sleep)
- Dimensions
- 1211 × 681.7 × 69.9 mm
- Weight
- 16.8 kg
- VESA Mount
- 600 × 400 mm
- Model Number
- LH55VHRRBGBXZA
Key Features
What It Delivers
- Razor-narrow bezel for seamless multi-panel tiling
- Direct LED backlighting for consistent brightness
- 700 nit peak brightness for high-ambient-light spaces
- 178° horizontal and vertical viewing angles
- Slim 69.9mm depth profile
- Built for 24/7 always-on operation
Get Started
Ready to Add the Samsung VH55R-R to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
