| Specification | Details |
|---|---|
| Display Size | 55-inch |
| Display Technology | IPS LCD Video Wall |
| Resolution | Full HD 1920 × 1080 |
| Backlight | Direct LED |
| Brightness | 500 cd/m² Typical |
| Contrast Ratio | 1200:1 Typical |
| Aspect Ratio | 16:9 |
| Bezel Width | 3.5 mm (UNB Generation) |
| Viewing Angle | 178° / 178° |
| Response Time | < 8 ms |
| Color Depth | 8-bit |
| White Point | Native 10,000 K |
| Calibration | Sense X Automatic Color & Brightness Calibration |
| Uniformity | 95% (9-point) |
| Screen Haze | 25% |
| Backlight Lifetime | 50,000 Hours |
| Cooling | Fan-less |
| Temperature Sensors | Integrated |
| Operation | 24/7 Continuous Use |
| Orientation | Landscape / Portrait |
| Mounting | VESA 600 × 400 |
| DisplayPort | 2× DP 1.2 Inputs, 1× DP 1.2 Output |
| HDMI | 2× HDMI 2.0 Inputs |
| Ethernet | 1× Ethernet Port |
| USB | 1× USB (Power Only) |
| HDCP | Supported |
| AC Input Voltage | 100–240 VAC, 50–60 Hz |
| Power Consumption | Approx. 190W |
| Heat Dissipation | 650 BTU/h |
| Dimensions | 1213.5 × 684.3 × 122.9 mm |
| Weight | 27.55 kg |
| Operating Temperature | 0°C to 40°C |
| Humidity | 20%–80% Non-condensing |
| Certifications | CE, FCC, RoHS |
Barco

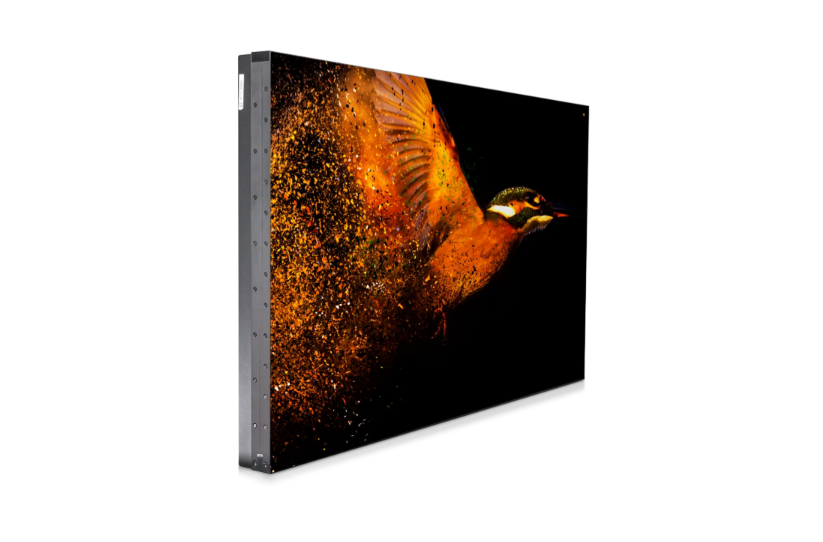

OverView KVD‑5521C
- 500 Nit brightness, UNB generation
- Superb inter-tile color and brightness
- User-friendly video-wall setup and control interface
- Sense X brightness and color automatic calibration with integrated sensors
- Fan-less solution for noiseless performance
- Optional 5-year service packages
