Crestron DSP-860

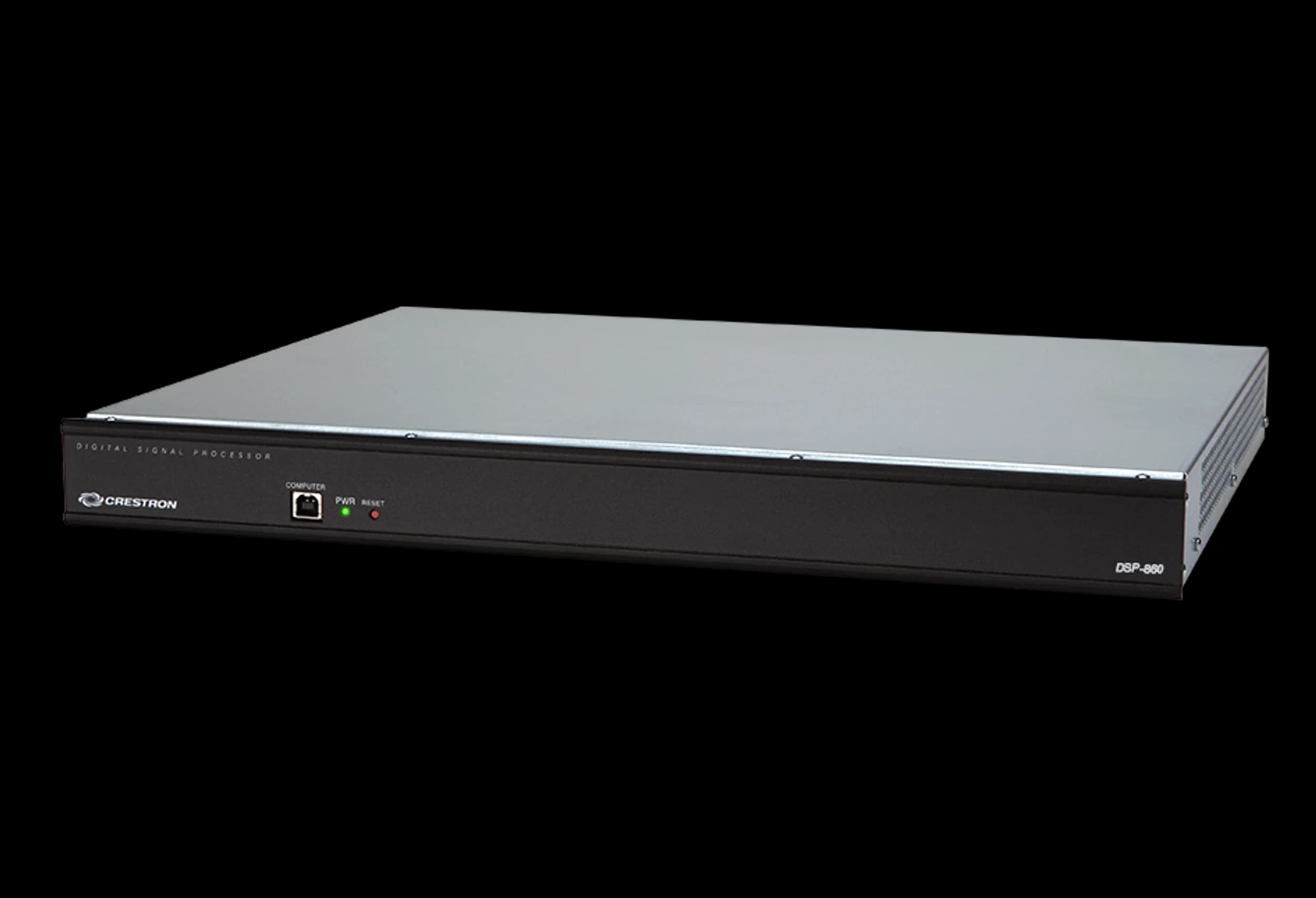

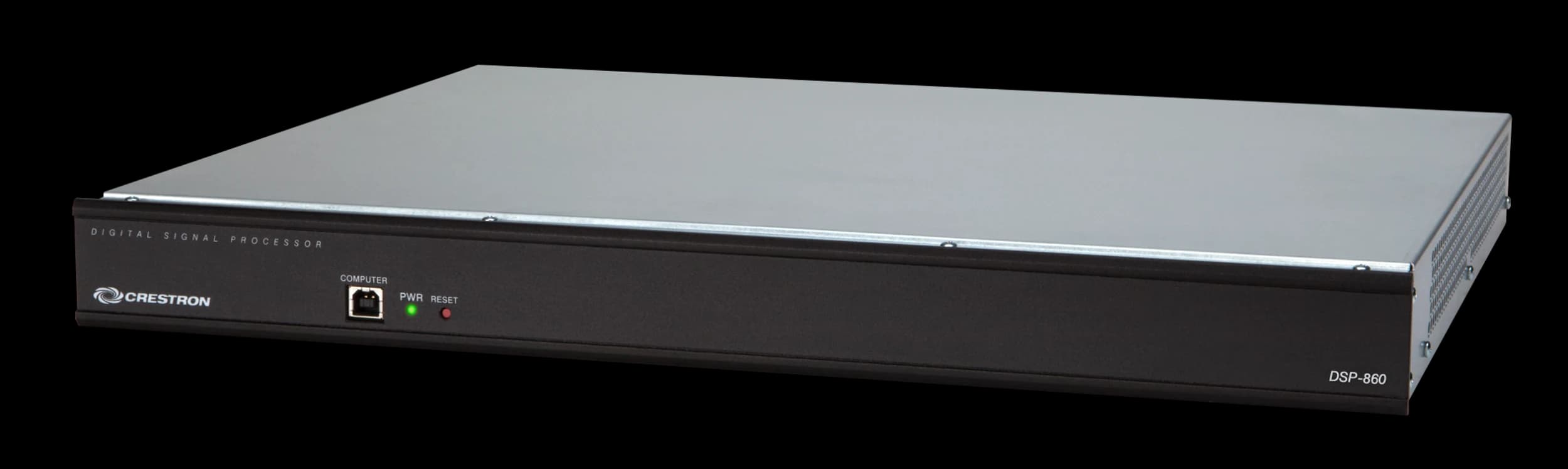

The Crestron DSP-860 is an Avia digital signal processor with eight balanced microphone or line inputs and six line outputs, operating at 24-bit 48 kHz with 3.0 ms analog-to-analog latency.

It is configured with the Avia Audio Tool over USB or Ethernet, integrates with Crestron control systems and mounts in a single 1 RU rack chassis.

Specifications

Technical Overview

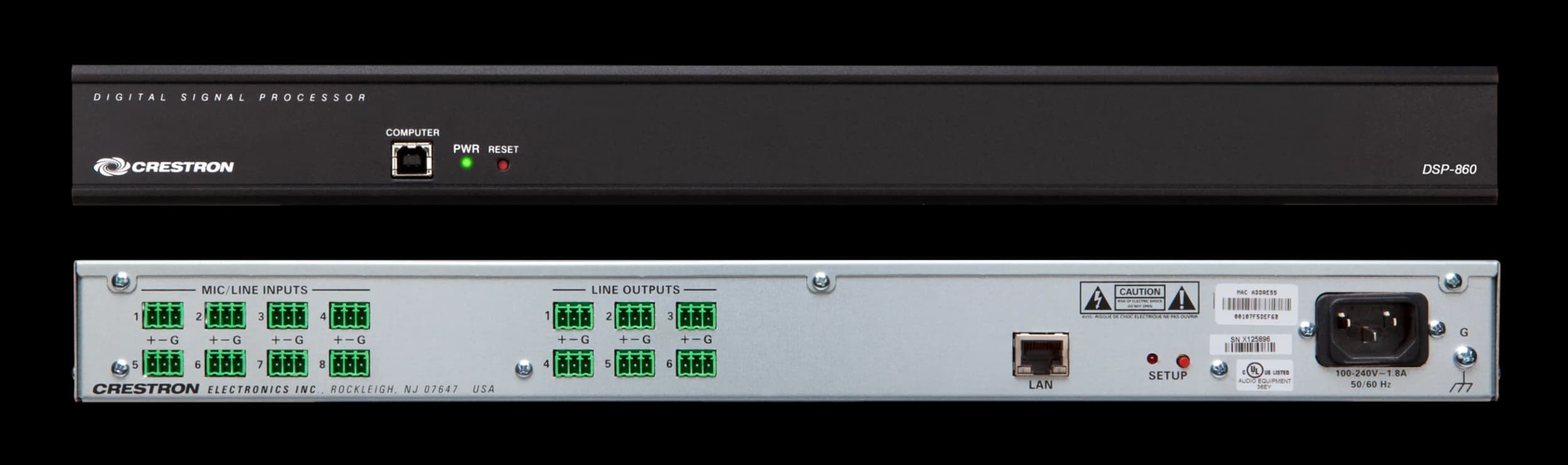

Mic/Line Inputs: 8 × balanced 3-pin 3.5 mm terminal blocks; +24 dBu max; 66 dB gain range; 10 kΩ input impedance; +48 V phantom power per channel
Line Outputs: 6 × balanced/unbalanced 3-pin 3.5 mm terminal blocks; +24 dBu max; 150 Ω output impedance
Conversion: 24-bit 48 kHz A/D and D/A
Frequency Response: 20 Hz to 20 kHz ±0.5 dB
THD: 0.001% (20 Hz–20 kHz, 0 dB gain, +4 dBu input)
Dynamic Range: 110 dB, 22 Hz–22 kHz
Latency: 3.0 ms (analog in to analog out)
Communications: Ethernet 10/100/1000 Mbps (CIP, DHCP, SSL, SSH, SFTP); USB device port for console setup
Power: 100–240 VAC, 50/60 Hz, 1.8 A; 30 W typical
Dimensions: 1.72 in. H (44 mm, without feet) × 14.35 in. D (365 mm)
Weight: 8.4 lb (3.9 kg)
Mounting: Freestanding or 1 RU 19-inch rack-mountable
