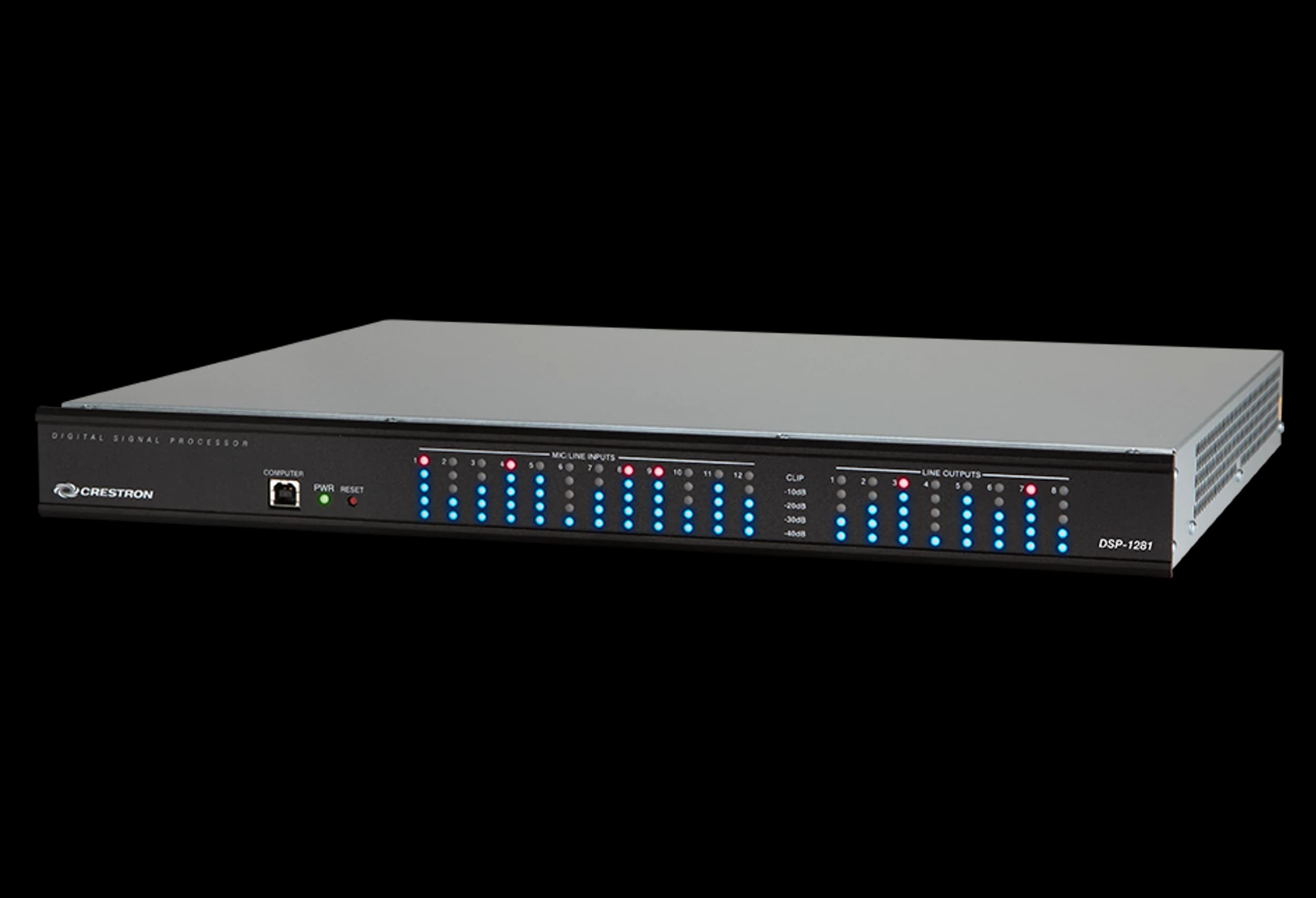

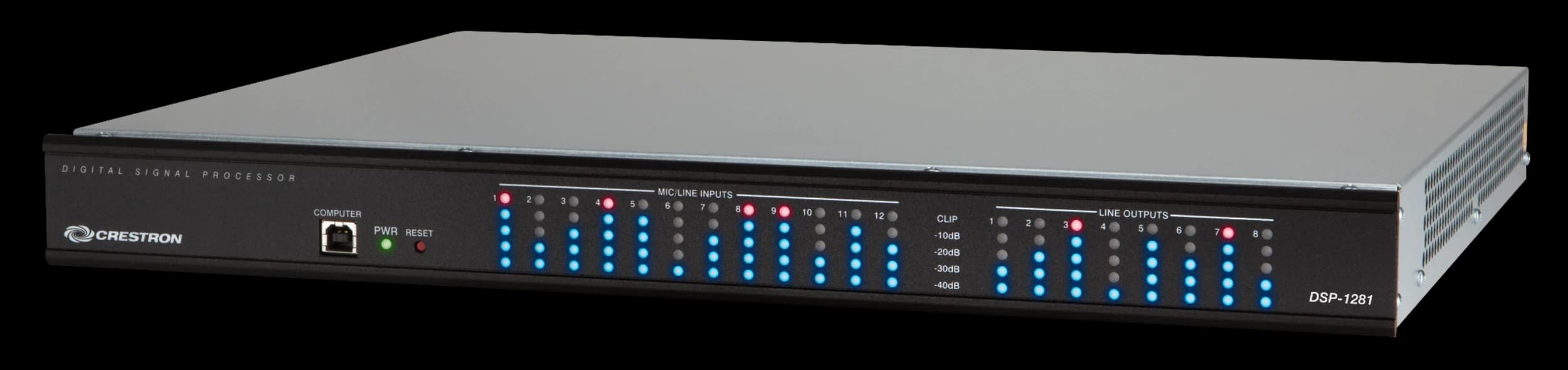

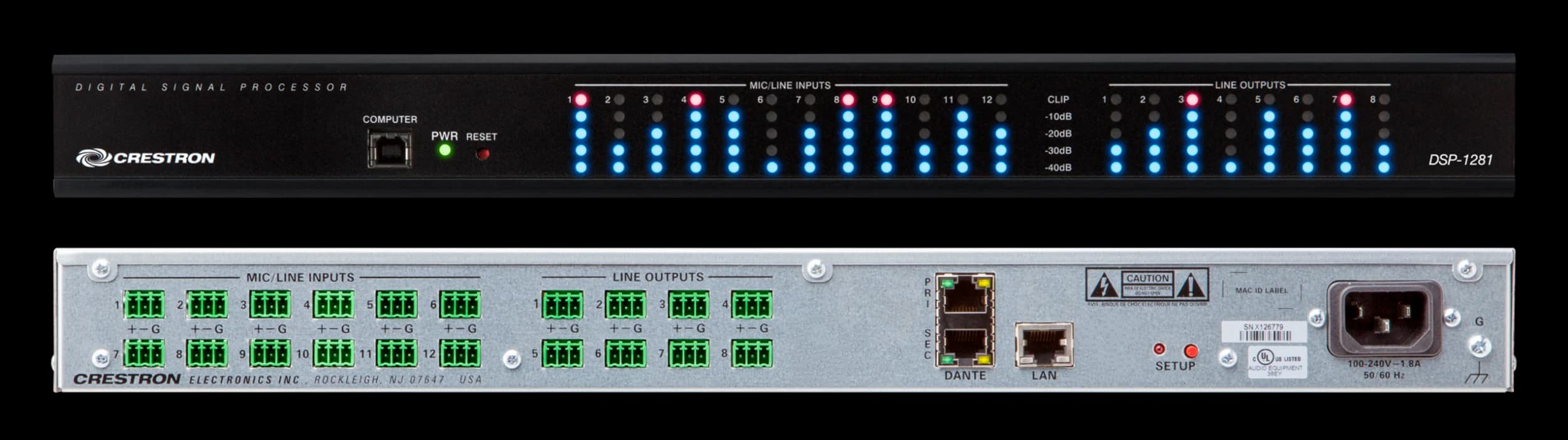

Crestron DSP-1281

The Crestron DSP-1281 is an Avia digital signal processor with twelve balanced microphone or line inputs, eight line outputs and a 32 × 32 Dante audio network interface with AES67 compatibility mode.

It operates at 24-bit 48 kHz with 3.0 ms analog-to-analog latency, and offers offline or live configuration over Ethernet or USB with native Crestron control integration.

Specifications

Technical Overview

Mic/Line Inputs: 12 × balanced 3-pin 3.5 mm terminal blocks; +24 dBu max; 66 dB gain; 10 kΩ; +48 V phantom power per channel
Line Outputs: 8 × balanced/unbalanced 3-pin 3.5 mm terminal blocks; +24 dBu max; 150 Ω output impedance
Dante I/O: 32 channels in and 32 channels out at up to 24-bit 48 kHz; dedicated primary and secondary 1000 Mbps Dante ports; AES67 compatibility mode
Conversion: 24-bit 48 kHz A/D and D/A
Frequency Response: 20 Hz to 20 kHz ±0.5 dB
THD: 0.001% (20 Hz–20 kHz, 0 dB gain, +4 dBu input)
Dynamic Range: 110 dB, 22 Hz–22 kHz
Latency: 3.0 ms (analog in to analog out)
Communications: Ethernet 10/100/1000 Mbps (TCP/IP, UDP/IP, CIP, DHCP, SSL, SSH, SFTP); USB device port for setup
Dimensions: 1.72 in. H (44 cm, without feet) × 17.28 in. W (439 mm) × 14.35 in. D (365 mm)
Weight: 9.2 lb (4.1 kg)
Mounting: Freestanding or 1 RU 19-inch rack-mountable

Compatible Products

Frequently Paired With

Crestron DSP-860

Crestron Avia DSP-1280
