Crestron IV-CAM-P20-B

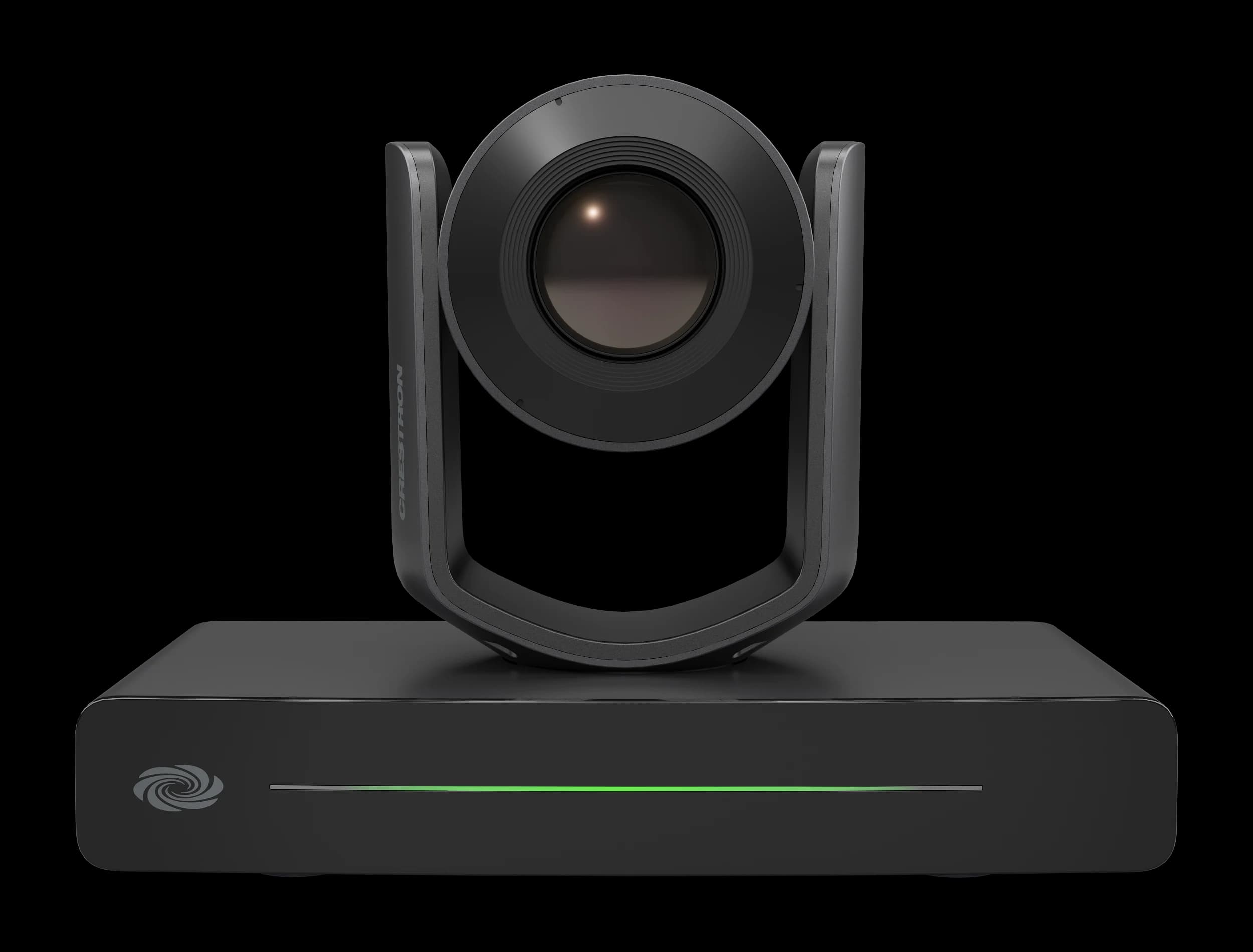

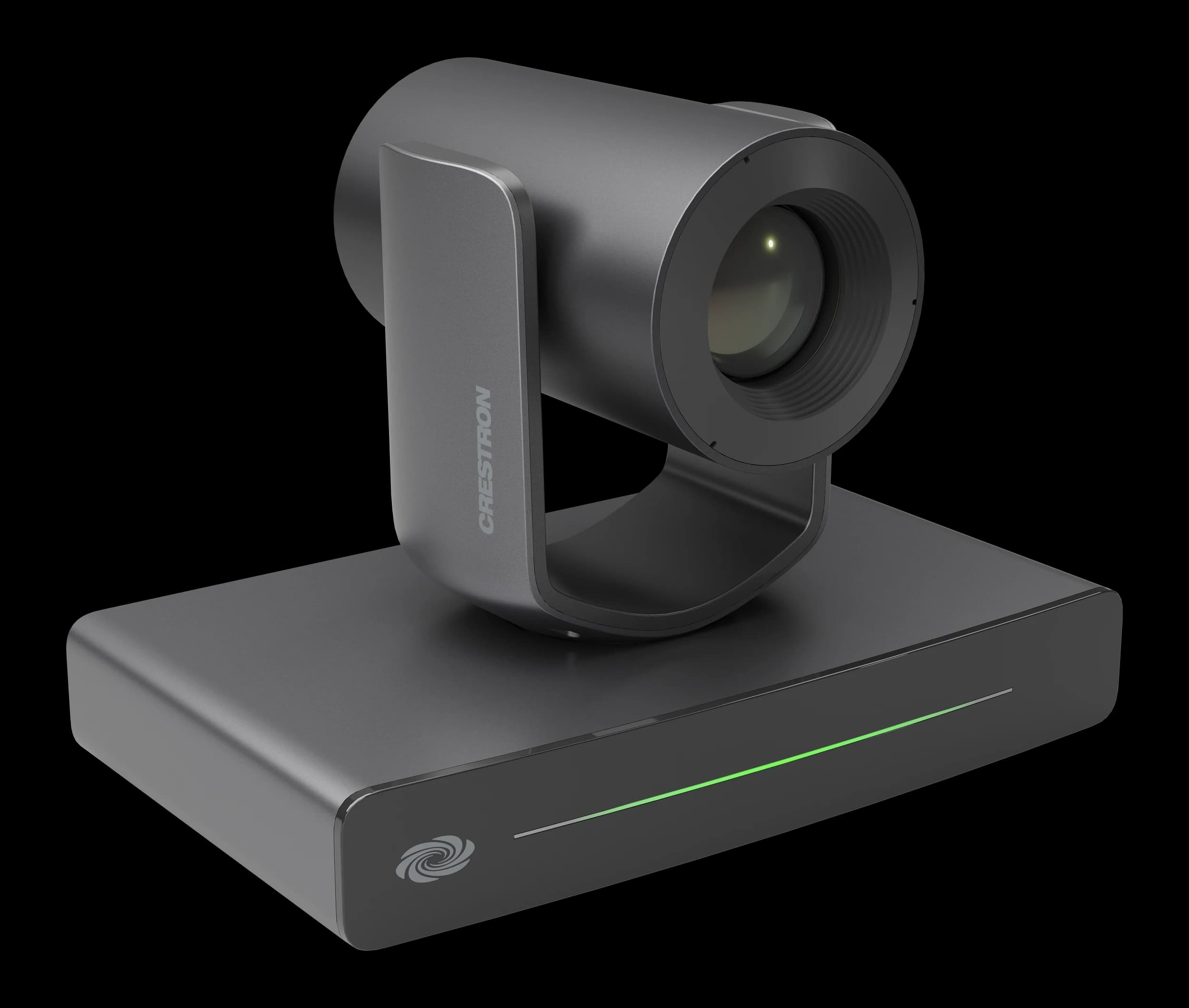

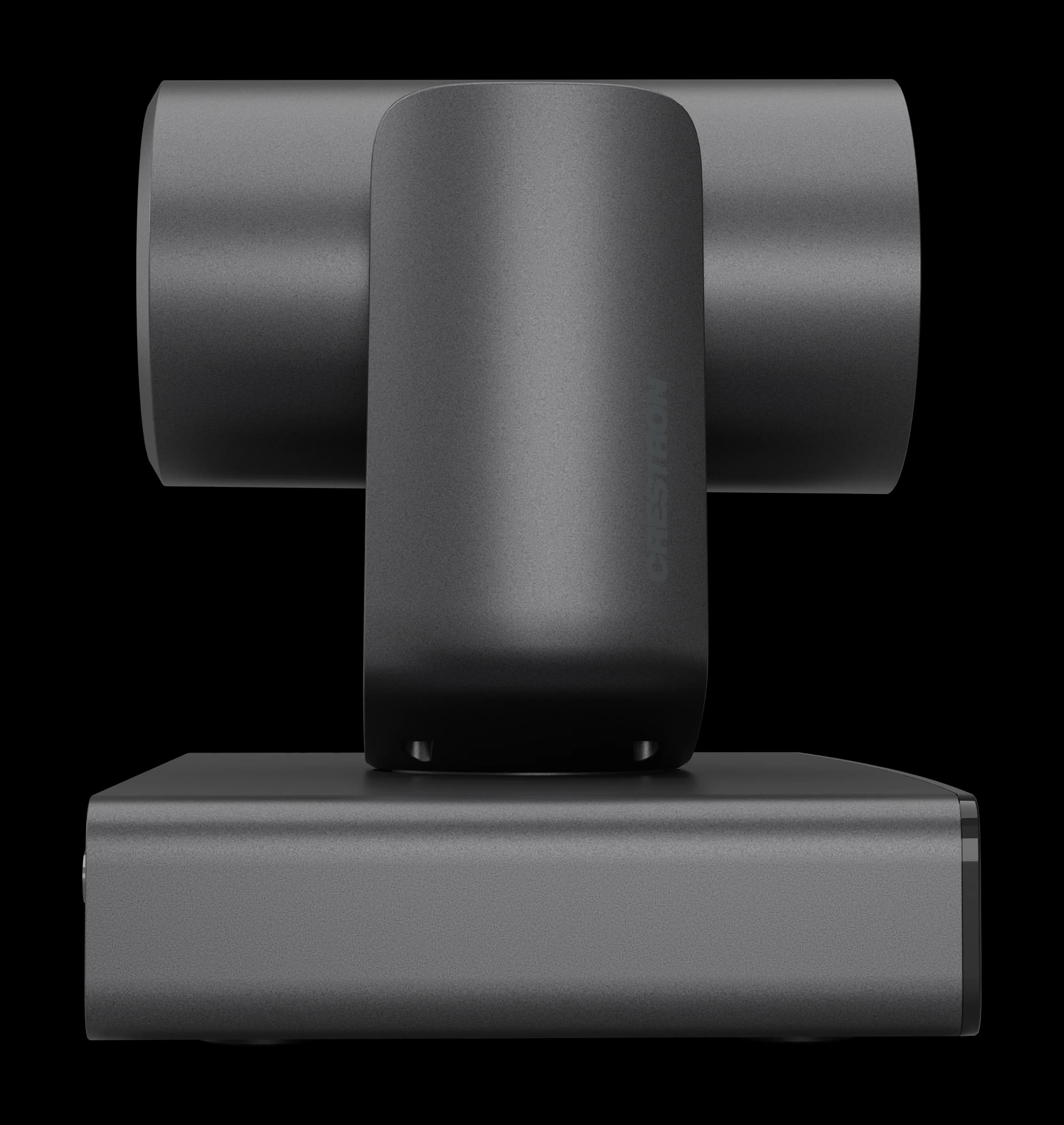

The Crestron IV-CAM-P20-B is a 1 Beyond PTZ camera for large to extra-large rooms, where a single camera needs to cover several areas. It is used with the IV-SAM-VX2-S Automate VX system for multi-camera switching.

It outputs up to 1080p60 over 3G-SDI, HDMI, USB and NDI HX2, supports up to 256 presets, and is powered over Ethernet, with control over VISCA, PELCO and ONVIF protocols.

Specifications

Technical Overview

Image Sensor: 1/2.8 in. Sony CMOS
Optical Zoom: 20x (focal length F = 5.2–94 mm)
Field of View: Horizontal 56.45°
Pan / Tilt: Pan -130° to 130°; tilt -30° to 90°
Pan / Tilt Speed: Pan 0.2–90°/s; tilt 0.2–70°/s
Presets: Up to 256
Minimum Illumination: 2 lux
Video Outputs: 3G-SDI, HDMI, USB, NDI HX2, ONVIF, RTSP, UVC
Signal Formats: SDI or HDMI 1080p60/59.94/50/30/29.94/25; 720p60/59.94/50
Control Protocols: VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF

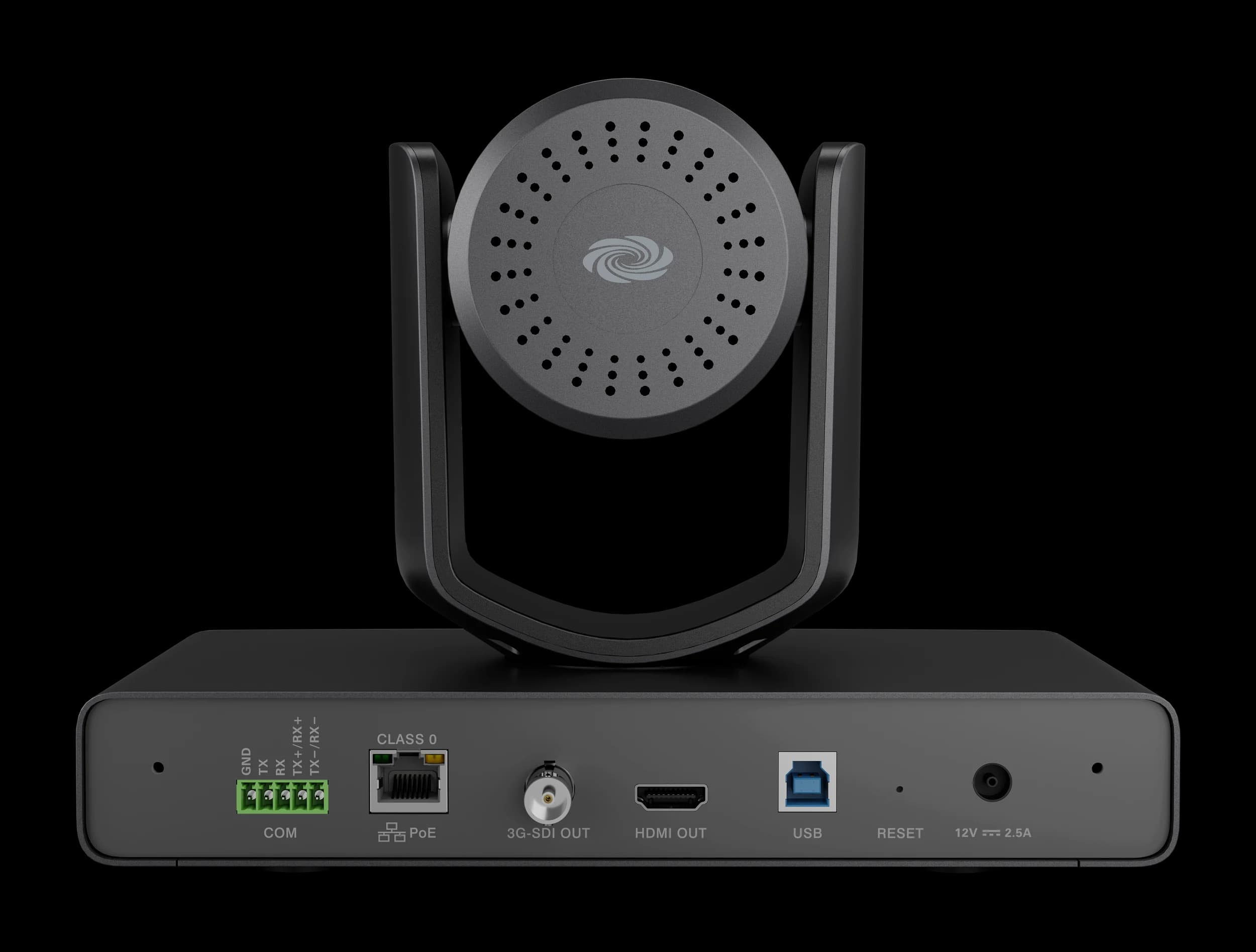

Communications: Ethernet RJ-45 100 Mbps; RS-232/RS-485 COM port
Power: PoE IEEE 802.3af Class 3 (15.4 W rating); 12 VDC 2.5 A power pack sold separately (PW-1225DU)
Mounting: IV-CAMA-UMB universal bracket included; IVA-WMT-BRKT-1B and IVA-CMT-BRKTJ-1B sold separately
