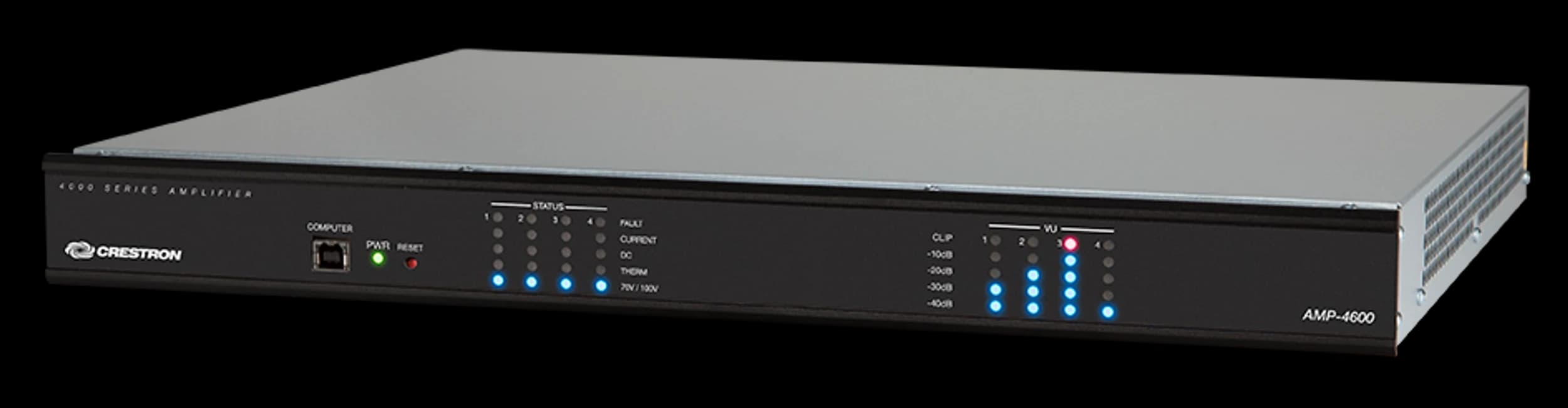

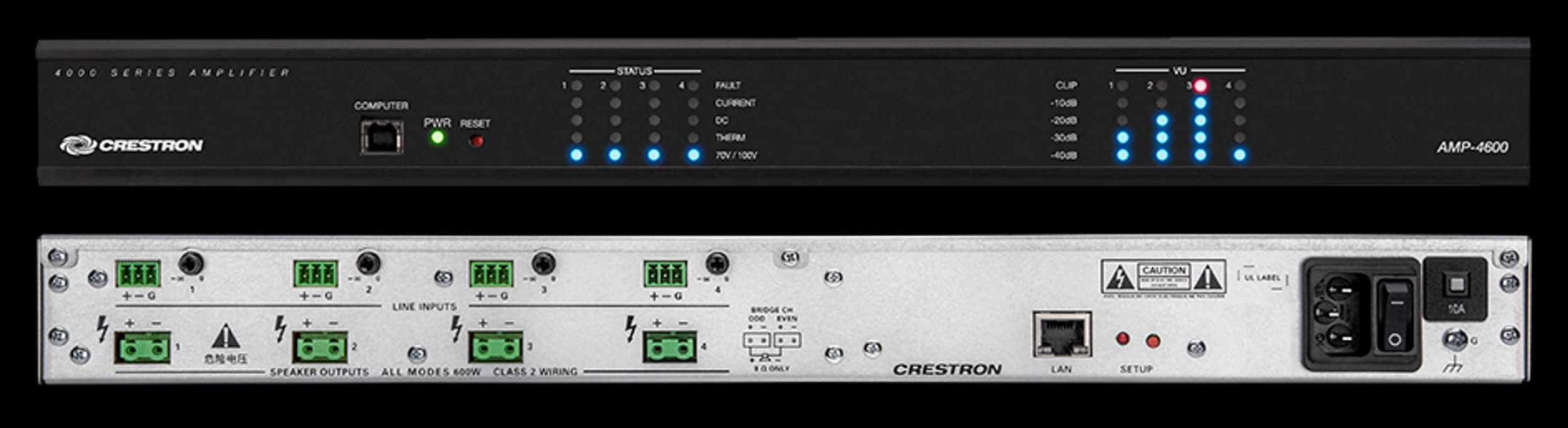

Crestron AMP-4600

The Crestron AMP-4600 is a 1 RU, four-channel power amplifier delivering 600 watts per channel into 4 or 8 Ω or 70/100 V loads, and 1200 watts per bridged channel pair at 8 Ω.

Each channel is configurable through the Avia Audio Tool software for mono, stereo, bridged, Lo-Z or Hi-Z operation, with a power throttle from 600 W down to 50 W per channel. Faults are reported to the control system.

Specifications

Technical Overview

Output Power: 600 W per channel at 4–8 Ω or 70/100 V nominal; 1200 W per bridged pair at 8 Ω
Operating Modes: Mono, stereo (channels 1&2, 3&4), bridged (8 Ω), 4/8 Ω Lo-Z or 70/100 V Hi-Z per channel
Frequency Response: 20 Hz to 20 kHz ±0.5 dB at 1 W, 4–8 Ω; 200 Hz to 20 kHz ±0.5 dB at 1 W, 70/100 V
THD+N: <0.05% @ 1 kHz at 3 dB below clipping
S/N Ratio: >103 dBA, 20 Hz to 20 kHz
Input: Balanced or unbalanced analog line-level
Ethernet: 10/100 Mbps; TCP/IP, CIP, DHCP, SSL, SSH, SFTP
Power: 100–240 VAC, 50/60 Hz, 4–2 A; 300 W input
Dimensions: 1.72 in. H × 17.26 in. W (19.00 in. with rack ears) × 14.59 in. D (44 × 436 × 371 mm)
Weight: 14.1 lb (6.4 kg)
Mounting: Freestanding or 1 RU 19-inch rack-mountable with rack ears and rear support brackets
Operating Temperature: 41°F to 104°F (5°C to 40°C)
