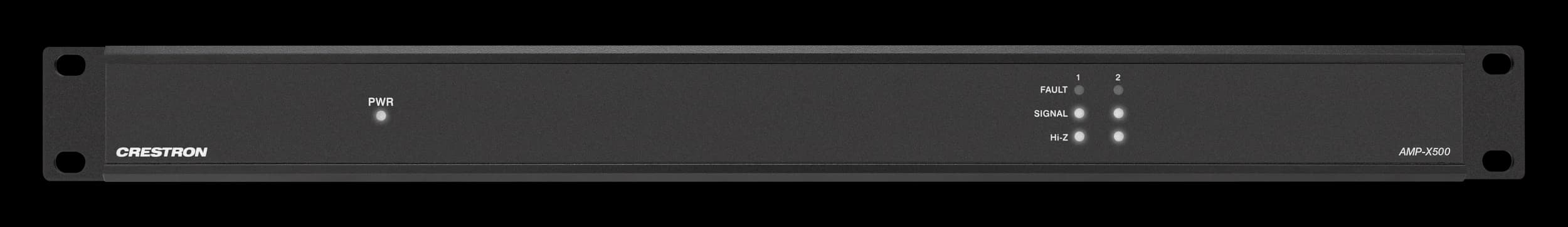

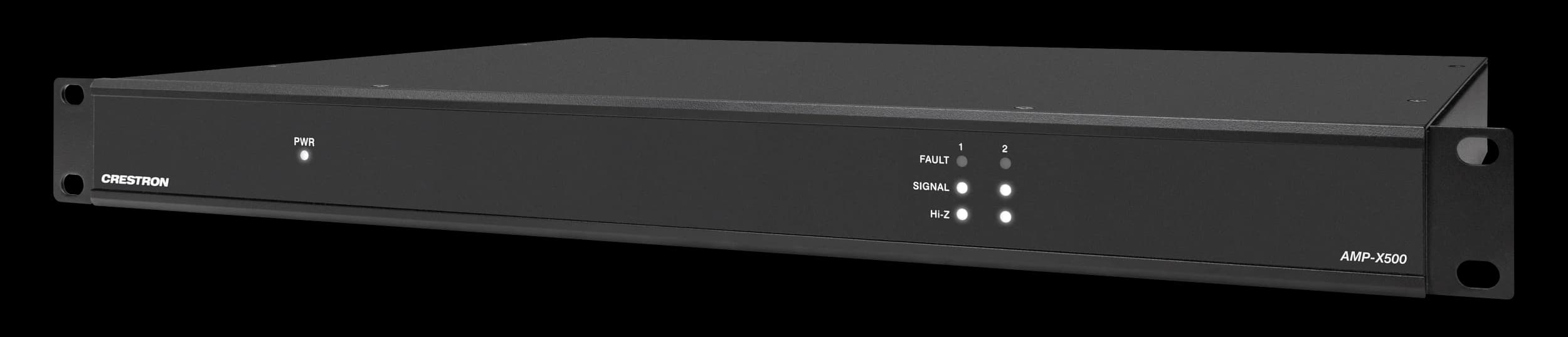

Crestron AMP-X500

The Crestron AMP-X500 is a compact 1 RU, two-channel Class D amplifier with up to 500 W total output, supporting Lo-Z operation into 4 or 8 Ω loads and Hi-Z operation into 70 V or 100 V distributed systems.

A stereo bus input and output distribute one audio source to multiple amplifiers, and the chassis stacks vertically with other Crestron amplifiers without extra ventilation space.

Specifications

Technical Overview

Output Power per Channel: 250 W at 4 or 8 Ω; 500 W at 8 Ω only; 500 W at 70/100 V (RMS, continuous up to 10 s)
Total Output: 500 W maximum across all channels

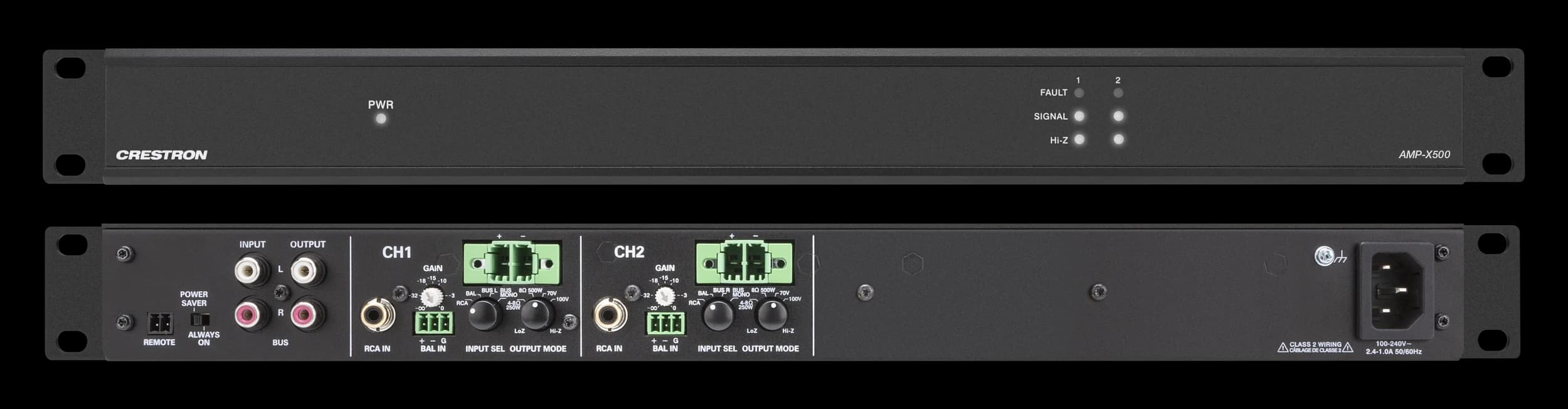

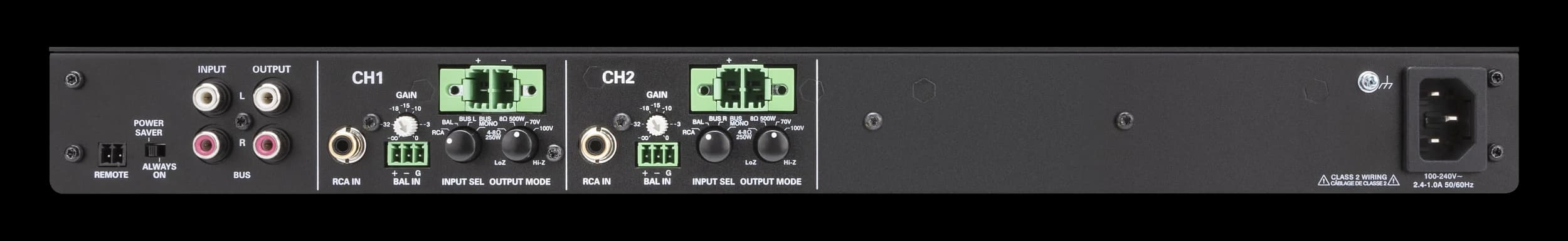

Input: Balanced 3-pin 3.5 mm (max 7.75 Vrms) and unbalanced RCA (max 2.24 Vrms); 20 kΩ balanced input impedance; stereo bus input
Frequency Response: 20 Hz to 20 kHz ±0.5 dB at 1 W
THD+N: <0.1% at 1 kHz at -3 dB full rated output power
S/N Ratio: >103 dBA, 20 Hz to 20 kHz, balanced
Power: 100–240 VAC, 50/60 Hz, 1.2–0.6 A; 115 W consumption (2 channels at 1/8 power, 4 Ω); 8.8 W idle
Power Mode: Power Saver (25-minute sleep) or Always On
Dimensions: 1.75 in. H (44 mm, 1.89 in. with feet) × 19.00 in. W (483 mm) × 14.57 in. D (370 mm)
Weight: 9.93 lb (4.5 kg)
Mounting: Freestanding or 1 RU 19-inch rack-mountable; stackable with other Crestron AMP series
Operating Temperature: 41°F to 104°F (5°C to 40°C)
