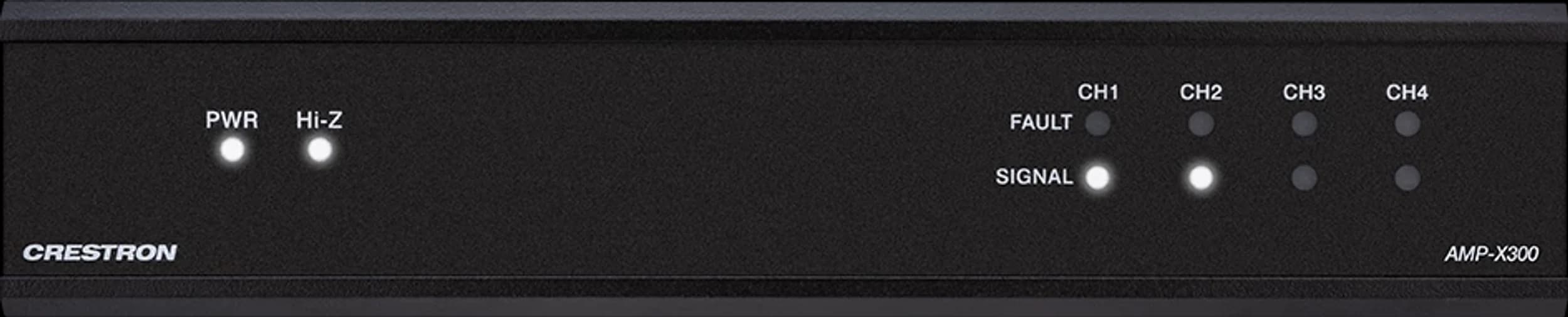

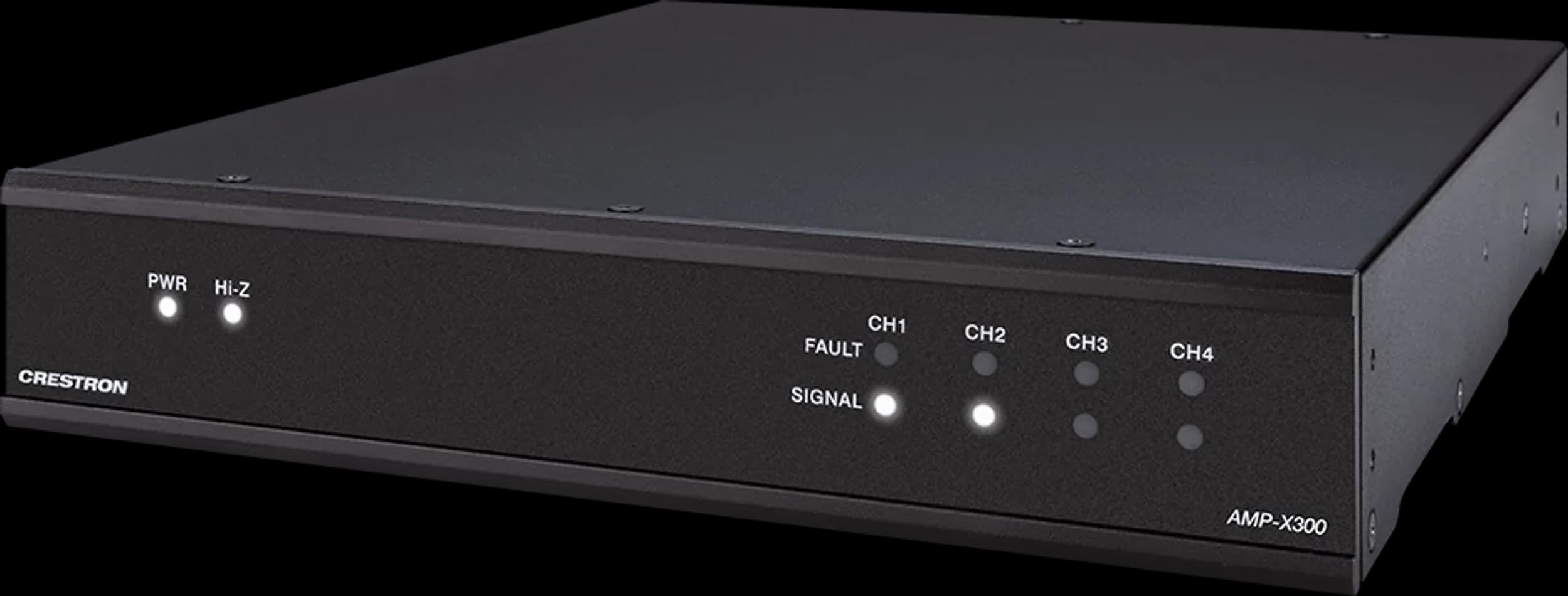

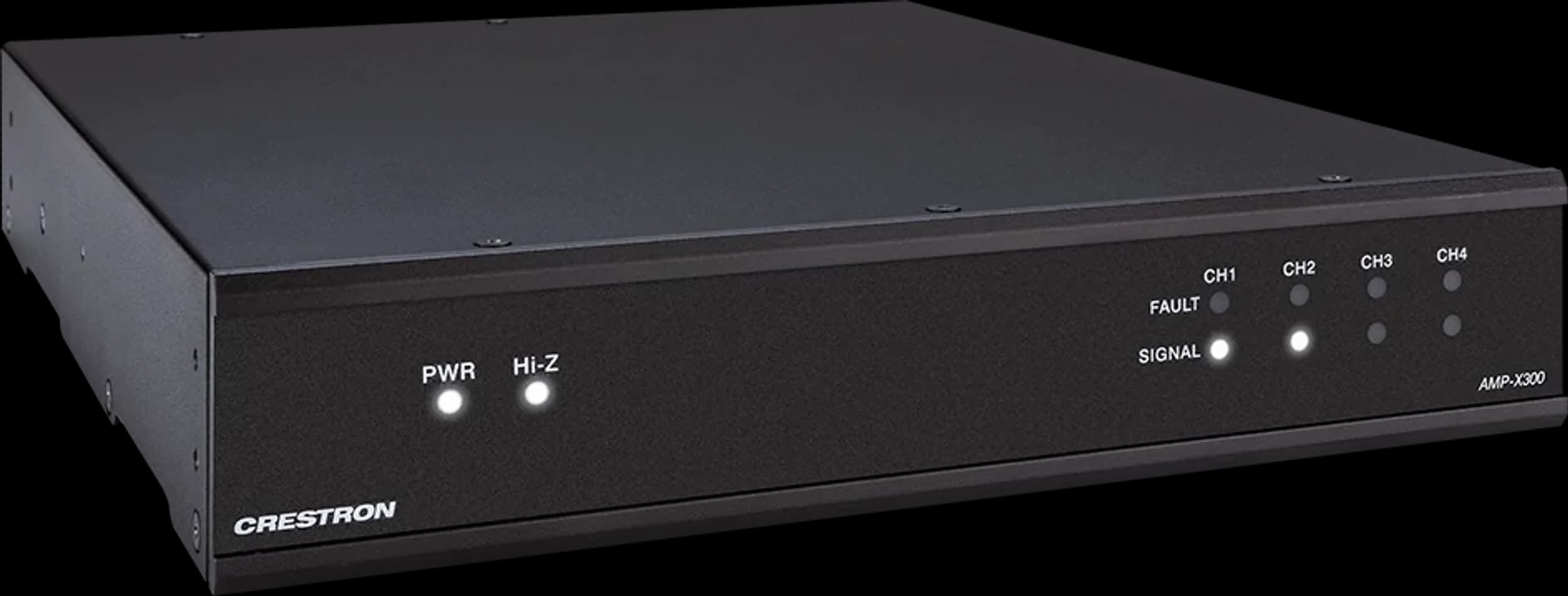

Crestron AMP-X300

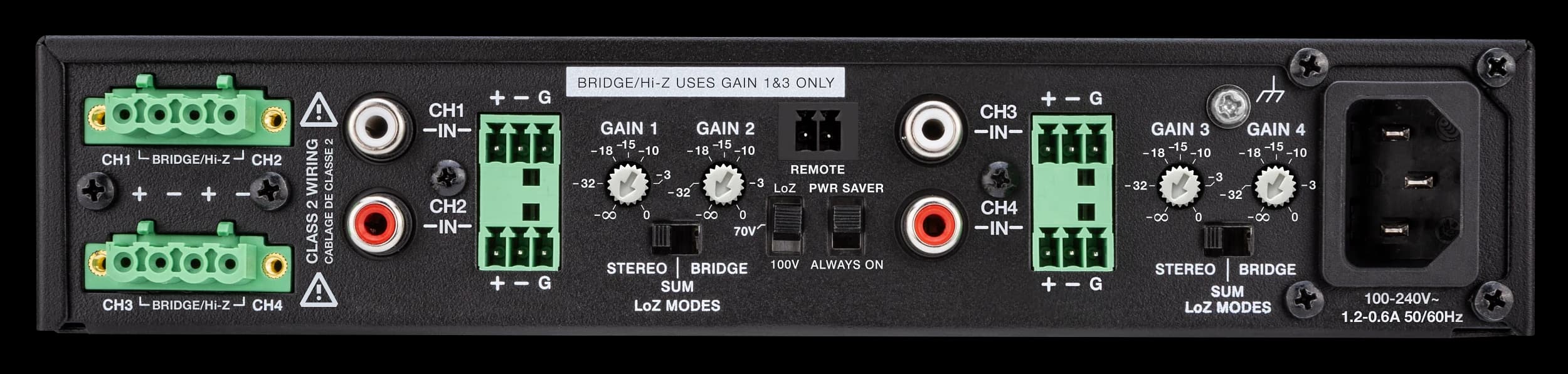

The Crestron AMP-X300 is a 1 RU, half-rack-width Class D amplifier with four channels and up to 300 W total output. It can be configured for LoZ 4 or 8 Ω loads, Hi-Z 70 V or 100 V distributed speakers, or bridged operation.

Advanced Class D design reduces power consumption and heat, and a power-saver mode returns the amplifier to standby after 25 minutes without an input signal.

Specifications

Technical Overview

Output Power: 1 channel driven: 150 W (8 Ω) / 200 W (4 Ω); 4 channels driven: 75 W per channel; up to 300 W total; 300 W bridged or Hi-Z
Input: Balanced or unbalanced analog line-level; 1.23 Vrms (+4 dBu) balanced, 0.316 Vrms (-10 dBV) unbalanced
Frequency Response: 20 Hz to 20 kHz ±0.5 dB at 1 W
THD+N: <0.1% at 1 kHz at -3 dB full rated output power
S/N Ratio: >103 dBA, 20 Hz to 20 kHz, balanced
Protection: Over-current, under-voltage, over-temperature, DC offset, extreme high frequency
Power: 100–240 VAC, 50/60 Hz, 1.2–0.6 A; 75 W consumption at 1/8 power; 16 W idle (Hi-Z)
Power Mode: Power Saver (25-minute sleep) or Always On
Dimensions: 1.75 in. H (44 mm, without feet) × 8.67 in. W (220 mm, without brackets; 19.00 in. with brackets) × 11.04 in. D (280 mm)
Mounting: Freestanding, surface mount or ½-width 1 RU 19-inch rack-mountable; ganging hardware included
Operating Temperature: 41°F to 104°F (5°C to 40°C)

Compatible Products

Frequently Paired With

Crestron AMP-X500

Crestron AMP-4600
